Replace brake fluid - AP42.00-P-4280A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129 with ENGINE 119, 120 with CODE (472) Electronic Stability Program (ESP)
MODEL 140 with CODE (472) Electronic Stability Program (ESP)
MODEL 210 with ENGINE 119 with CODE (472) Electronic Stability Program (ESP)

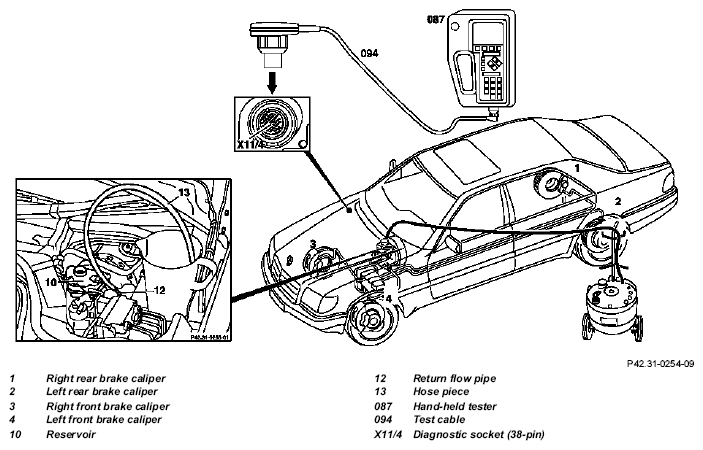

Fig 1: Identifying Front/Rear Brake Caliper, Reservoir, Return Flow Pipe, Hose Pipe And Diagnostic Socket
| Figure item, etc. | Work instructions | ||
|---|---|---|---|
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | All models | AH42.50-P-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |
| 1 | Note fluid level of brake fluid reservoir (10). | ||
| 2 | Unscrew cap | ||
| 3 | Empty chambers in the brake fluid reservoir (10) so that the base is still covered | ||
| 4 | Fill up reservoir (10) with new brake fluid | ||
| 5 | Disconnect return line (12) from reservoir (10) | ||
| 6 | Connect hose fitting (13) to return line | ||
| 7 | Connect handheld tester (087) with test cable (Multiplexer) (094) to the diagnostic data link connector (X11/4) | Handheld tester (087), see GOTIS http://gotis.aftersales.daimlerchrysler.com Test cable (Multiplexer) (094), see GOTIS http://gotis.aftersales.daimlerchrysler.com |
|
| 8 | Switch on ignition | ||
| 9 | Actuate precharging pump with handheld tester (087) and pump brake fluid out of the precharging circuit into a vessel until the reservoir (10) is emptied so that the base is still covered | ||
| 10 | Connect brake fluid changing equipment | Brake fluid changing equipment, see GOTIS http://gotis.aftersales.daimlerchrysler.com |
|
| *BF42.10-P-1001-01A | |||
| 11 | Carry out the bleeding process as per the instructions in the handheld tester display: Bleed menu item brake system |
||
| Front axle, model 129, 140: |
*BA42.10-P-1002-10I | ||
| Front axle model 210: |
*BA42.10-P-1002-10F | ||
| Rear axle, model 129, 140: |
*BA42.10-P-1002-12I | ||
| Rear axle model 210: |
*BA42.10-P-1001-12F | ||
| *BF42.10-P-1001-01A | |||
| 12 | Brake fluid changing equipment, and check brake fluid level, fill up if necessary in accordance with the level noted beforehand |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 129 | Model 140 without special protection | Model 140 with special protection | |
|---|---|---|---|---|---|
| BA42.10-P-1002-10I | Bleed screw to brake caliper | Nm | 7 | 7 | 7 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 210 | ||
|---|---|---|---|---|
| BA42.10-P-1002-10F | Bleed screw to brake caliper | M8 | Nm | 7 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 129 | Model 140 | |
|---|---|---|---|---|
| BA42.10-P-1002-12I | Bleed screw to brake caliper | Nm | 7 | 7 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 210 | |
|---|---|---|---|
| BA42.10-P-1001-12F | Bleed screw to brake caliper | Nm | 7 |
BRAKE FLUID
| Number | Designation | Model 129 | Model 140 | ||
|---|---|---|---|---|---|
| BF42.10-P-1001-01A | Brake fluid | Filling capacity | Liters | ≈ 0.45 to 0.6 | ≈ 0.7...0.9 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | BB00.40-P-0331-00A | |||
BRAKE FLUID
| Number | Designation | Model 210 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01A | Brake fluid | Filling capacity | Liters | ≈ 0.45 to 0.6 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | |||
