Checking the parking brake control cables for easy operation - wh4256pkw0000x(4256)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85
| Parking brake | apply a number of times while second man checks operation of rear control cables, intermediate and compensating lever and front control cable. |

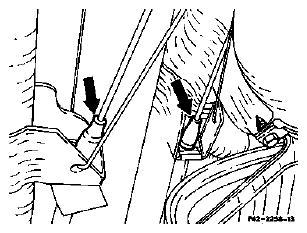

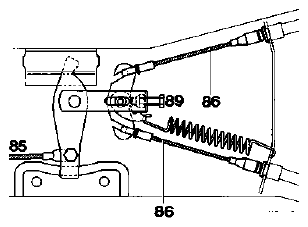

| Front brake control cable (85) and rear brake control cable (86) | check visually. Pay particular attention to rubber cuffs (arrows), which seal the control cable in the cable guide. |
