Removing, installing sensor mount of Parktronic system - AR54.65-P-0002-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Pin Wrench (140 589 05 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Torque Screwdriver (001 589 81 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

PARKTRONIC SYSTEM

Number	Designation		Model 140
BA54.65-P-1001-01A	Union nut to sensor support	Nm	2.5

Using pin wrench, unscrew union nut (1) and take out sensor support (2)

It is absolutely essential to maintain the tightening torque of union nut when installing, otherwise sensor malfunctions may occur.

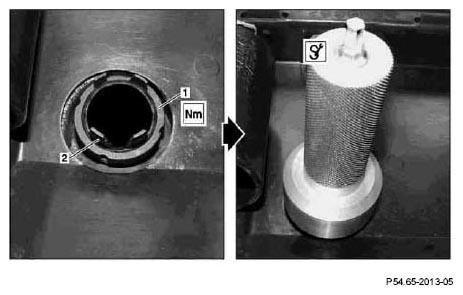

Fig 3: Identifying Union Nut And Sensor Support

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
