Replacing ambient temperature display sensor - ra540b1406341x(6341)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

B. Temperature sensor Model 140 up to approx.06/96

B. Temperature sensor as of approx. 06/96

Preliminary work:

Engine compartment paneling removed (61-1105) on gasoline engines.

Front noise encapsulation removed (94-5310) on diesel engines.

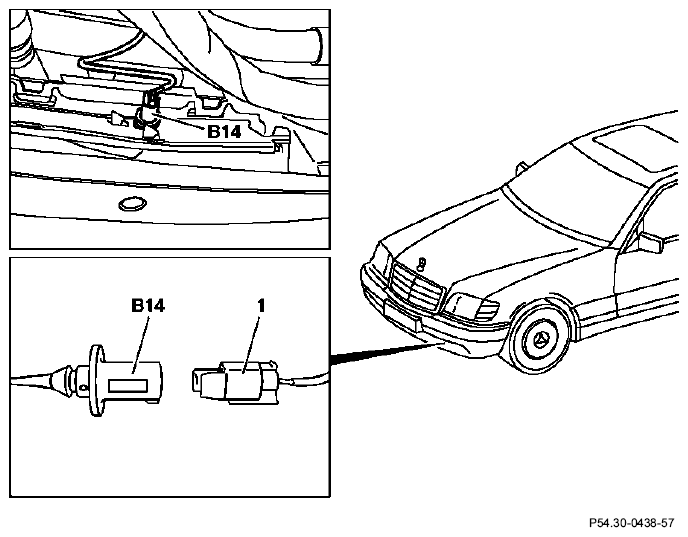

Fig 1: Identifying Temperature Sensor And Wiring Harness Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Outside temperature indicator sensor (B14)	pull out of installation hole, press in.
Temperature sensor (B14)	disconnect from wiring harness (1), reconnect.
	NOTE: As of approx. 09/96 the wiring harness from the temperature sensor to the instrument cluster is installed without connector. In the event of a defect in the wiring harness tie it back and insulate (do not remove).
