Removing and installing trip computer control unit with display, models 129 and 140 - RA54001070433X(54-433)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation No. of Job Texts and Work Units,

Standard Texts and Flat Rates

  1. Model 129
    Fig 1: Identifying Trip Computer Control Unit With Display Components - Model 129
    G04686690Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Ground cable on battery Disconnect, connect.
    Cover (1) for operating unit Unclip, clip in.
    Retaining screws (2) Unscrew, screw in.
    Operating unit (3) Remove, install.
    Connector Disconnect from operating unit, plug in.
    Illumination Unclip, clip in.
    Retaining screws (4) Unscrew and remove cover, insert and screw in.
    2-pole connector Disconnect from microswitch, plug in.
    Connector Disconnect from trip computer control unit, plug in.
    Retaining screws (5) Unscrew, screw in.
    Trip computer control unit with display (N41) Remove, install.
  2. Model 140

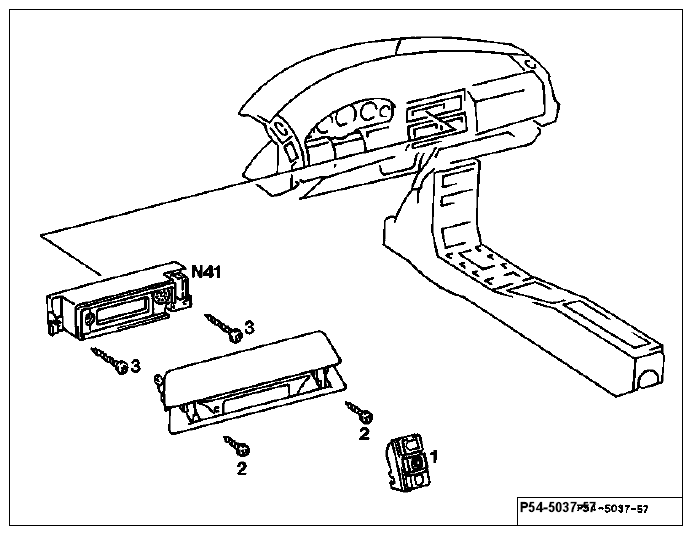

    Fig 2: Identifying Trip Computer Control Unit With Display Components - Model 140
    G04686691Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Ground cable on battery Disconnect, connect.
    Lock cylinder housing (1) for glove box Remove, install (REMOVAL AND INSTALLATION OF THE GLOVE COMPARTMENT LOCK CYLINDER ).
    Retaining screws (2) Unscrew and remove cover, insert and screw in.
    2-pole connector Disconnect from microswitch, plug in.
    Connector Disconnect from trip computer control unit, plug in.
    Retaining screws (3) Unscrew, screw in.
    Trip computer control unit with display (N41) Remove, install.
