Removal and installation of the diode matrix - ra54001401434x(1434)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with Engine 119 up to 06/92, Engine 120
Preliminary work:
Front passenger foot rest removed.
Right front pillar cover removed (68-150) .
Operation no. of operation texts and work units or standard texts and flat rates:

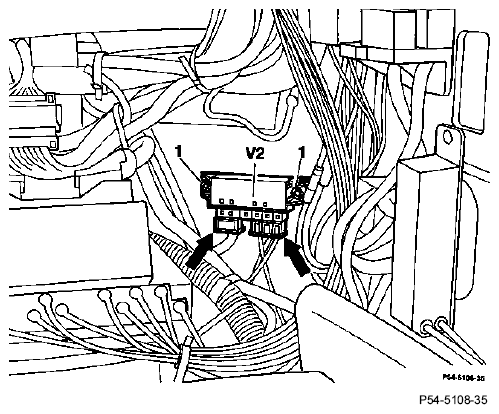

| Nuts (1) | unscrew, screw on. |
| Electrical connections (arrows) of diode matrix (V2) | detach, plug in. |
