Removing and installing injectors (ME-SFI) - AR07.03-P-6520F

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120.982 /983

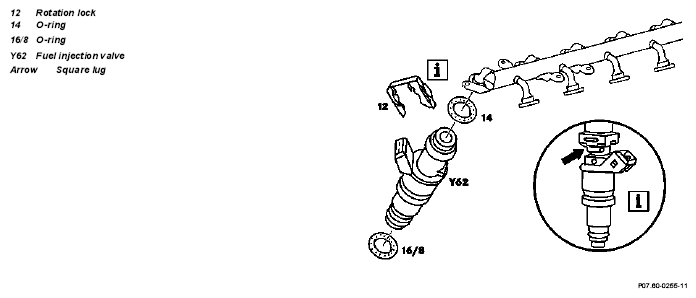

Fig 1: Identifying Injectors (ME-SFI) Components
G04677815Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Item illustration, etc. Working notes
IMPORTANT Removing and installing fuel rail with injectors (ME-SFI)   AR07.03-P-1451F
12 Rotation lock on fuel injection valve IMPORTANT Ensure that rotation lock catches in square lug (arrow) on fuel injection valves (Y62)
14, 16/8 O-rings IMPORTANT Replace. Oil for installation
