Removing and installing injectors (ME-SFI) - AR07.03-P-6520E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 119.981 /982 /985

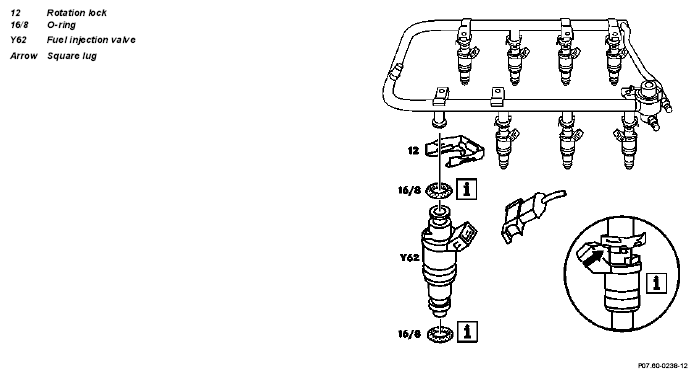

Fig 1: Identifying Rotation Lock, O-Ring, Fuel Injection Valve And Square Lug
G04624196Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Item illustration, etc. Working notes
IMPORTANT Remove fuel distributor with injection valves   AR07.03-P-1451E
12 Rotation lock on injection valve IMPORTANT Ensure that rotation lock catches in square lug (arrow) on fuel injection valve (Y62)
16/8 O-rings IMPORTANT Replace, oil for installation
Y62 Fuel injection valves
