Removing and installing injection valves (LH-SFI) - AR07.03-P-6521E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 119.97

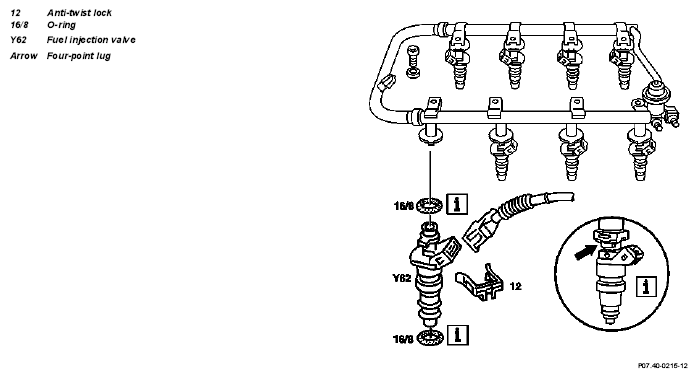

Fig 1: Identifying Injection Valves Components - Engine 119.97
G04677816Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig. item, etc. Work instructions
IMPORTANT Remove fuel rail together with injection valves, install   AR07.03-P-1452E
12 Anti-twist lock at injection valve IMPORTANT Anti-twist lock must engage in four-point lug (arrow) at fuel injection valve (Y62)
16/8 O-rings IMPORTANT replace, oil for installing
REFER TO COMPONENT MODIFICATIONS O-ring at fuel injection valve modified   BT07.03-P-0002-02A
Y62 LH-SFI fuel injection valves
REFER TO COMPONENT MODIFICATIONS LH-SFI fuel injection valves modified   BT07.03-P-0001-01A
