Removing and installing hot film mass air sensor - AR07.07-P-1453D

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 104.94 /99, 111.921 /943 /944 /945 /946 /947 /96 /970 /973 /974 /975 /977 (except, 104.990)

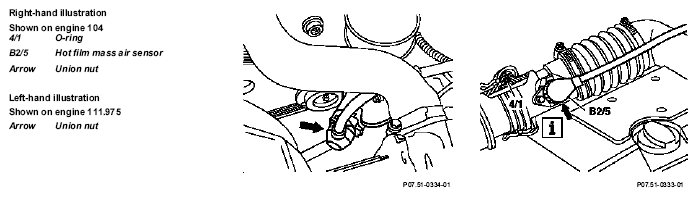

Fig 1: Identifying Hot Film Mass Air Sensor Components - Engine 104 & 111.975
G04713235Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

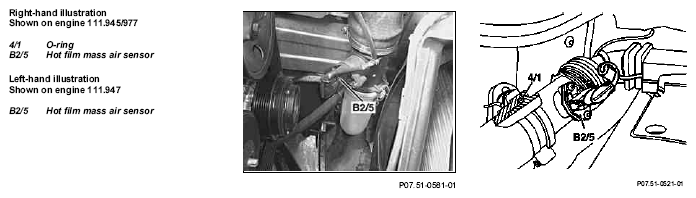

Fig 2: Identifying Hot Film Mass Air Sensor Components - Engine 111.945/977 & 111.947
G04713236Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig. item, etc. Work instructions
Arrow Union nut, plug connection NOTESInstalling:  tighten union nut until it engages
4/1 O-ring inspect, replace if necessary, oil to facilitate installation
B2/5 Hot film mass air sensor
