Removing and installing hot film mass air flow sensor - AR07.07-P-1453F

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120.982 /983

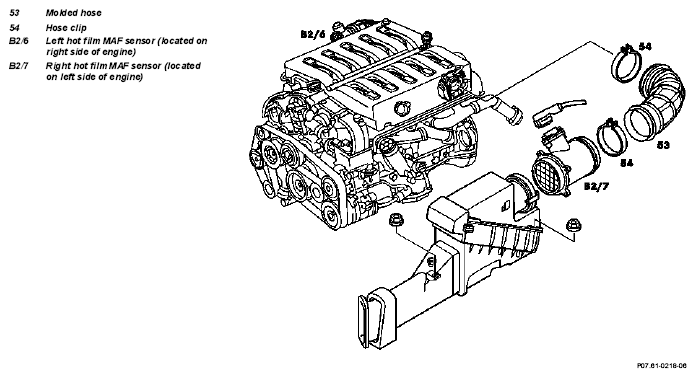

Fig 1: Identifying Hot Film Mass Air Flow Sensor Components
G04677819Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Figure/Item, etc Work instructions
IMPORTANTInstallation  Coupling, hot film MAF sensor Tighten union nut until it engages
53 Molded hose INSPECT Replace if necessary
