Testing the fuel pressure (after testing delivery) - ra07016025702x(5702)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96, 603.96/97 TURBO in Models 124, 126, 140, 201
Preceding work:
Testing delivery (07.1-5701)
Operation no. of operation texts and work units or standard texts and flat rates: 07-5702

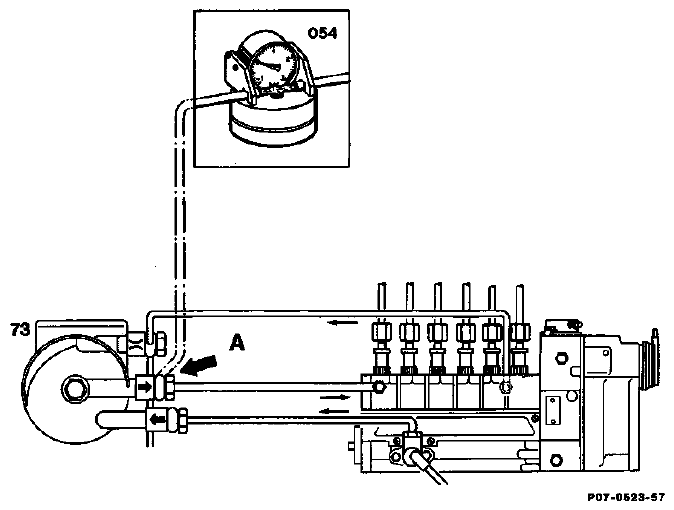

| Fuel line "A" at top part of filter (73) | unscrew, screw on. |
| Tester (054) | connect, disconnect. |
| Engine | run. Specifications at idling speed >0.3 bar, at full load >0.5 bar. If the specifications are not achieved, replace fuel filter and/or delivery pump. |
Special tools
