Replacement of the pressure valve seal - ra07016028627x(8627)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96, 603.96/97 TURBO in Models 124, 126, 140, 201
Operation no. of operation texts and work units or standard texts and flat rates: 07-8627

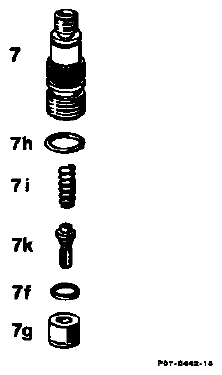

| Pressure valve holder (7) | tightening torque 35 Nm, special tool 617 589 01 09 00. |
| Compression spring (7i), copper seal (7f) | renew. |
| Pressure valve (7k) | rinse in fuel before installing. |
| Pressure valve carrier (7g) | pay attention to installed position. |
| O-ring (7h) | oil before assembling. |
Special tool
