Removing and installing rubber blocks for fuel pump pack - RA07041045860X (07.4-5860)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Operation No. of operation texts and operation values or standard texts and flat rates
07-5860

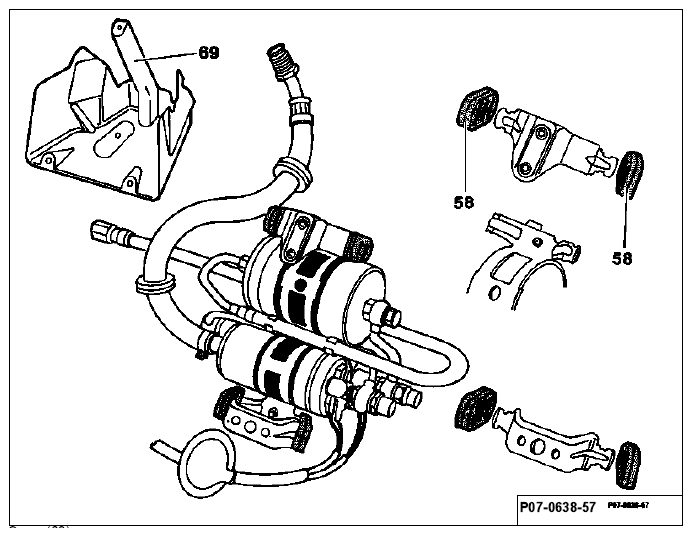

| Cover (69) | unscrew, screw on. |
| Rubber block (58) | detach from shoulders, fit in; renew if necessary. |
The fuel pump pack is located on the right ahead of the rear axle on the frame floor looking in direction of travel.
