Removing and installing hot wire air mass sensor - RA07041041453X (07.4-1453)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Operation No. of operation texts and operation values or standard texts and flat rates
07-1453

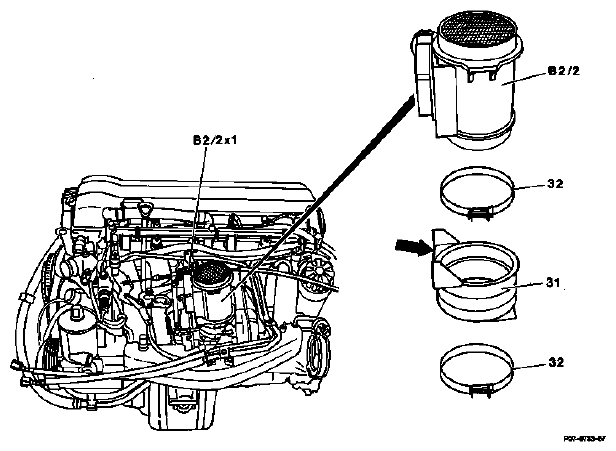

| Plug connection (B2/2x1) | at hot wire air mass sensor (B2/2), detach, fit on. Slacken knurled nut. |
| Hose clips (32) | slacken, tighten. |
| Hot wire air mass sensor (B2/2) | remove, install. |
| Connection hose (31) | check; renew if necessary. Pay attention to installed position (arrow) connecting hose (31)/hot wire air mass sensor (B2/2). |
| LH control unit fault memory | read, erase if necessary (see Diagnosis Manual Engine, Volume 2, Index 0). |
