Removing and installing LH resistance trimming plug - RA07041041459X (07.4-1459)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Operation No. of operation texts and operation values or standard texts and flat rates
07-1459

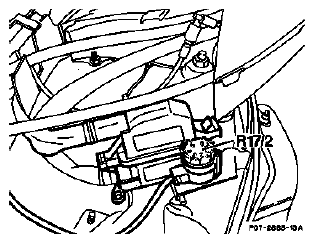

| LH resistance trimming plug (R17/2) | unplug, plug in. Pay attention to position. Pay attention to notes. The LH resistance trimming plug must be resealed after installing with the sealing pliers 124 589 01 37 00 and the embossing set 124 589 24 63 00. |
| LH control unit fault memory | read, erase if necessary (see Diagnosis Manual Engine, Volume 2, Index 0). |
NOTE:
Assignment of resistance trimming plug position ↔ complaint
see Diagnosis Manual Engine, Volume 2, Index 3.
All vehicles (except USA/California) have a resistance trimming plug for adapting the various injection maps. Vehicles with KAT have a green resistance trimming plug, vehicles without KAT have a white resistance trimming plug.
On vehicles with KAT and national version
it is not permitted to install a white resistance trimming plug otherwise the air pump for air injection will run constantly and the air pump will be damaged as a result.
Special tools
