Removal and installation of the fuel pump - ra07016025713x(5713)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96, 603.96/97 TURBO in Models 124, 126, 140, 201
Preceding work:
Operation no. of operation texts and work units or standard texts and flat rates: 07-5713

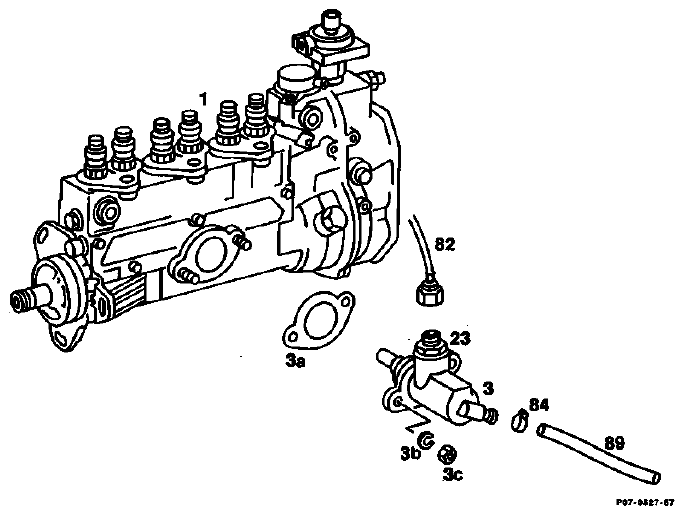

| Clip (84) | open, close. |
| Suction line (89) | detach, fit on. |
| Fuel filter inlet (82) | disconnect and connect. |
| Nuts (3c) | remove, install. |
| Washers (3b) | remove, install. |
| Fuel pump (3) | remove, install, collect engine oil flowing out when removing. |
| Gasket (3a) | renew. |
| Inlet connector (23) | remove, install when replacing the fuel pump. |
