Adjustment of start of delivery (following check) - wh0761pkw0000x(0761)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engines 601,602,603 with EGR - A. With position sensor (governor impulse method) B. With digital tester (governor impulse method)

IMPORTANT Before performing work with engine running, apply parking brake.

On vehicles with automatic transmission shift transmission to position "P".

  1. Adjusting start on delivery with position sensor (governor impulse method) following checking

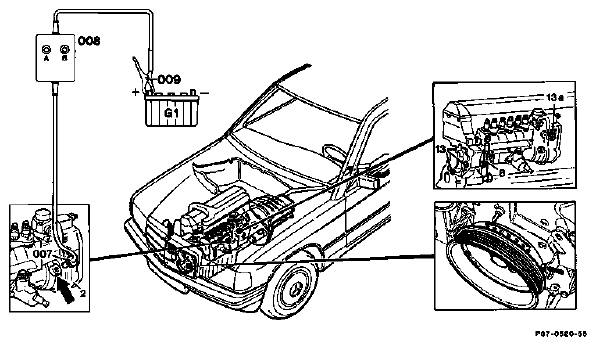

    Fig 1: Adjusting Start On Delivery With Position Sensor
    G05436813Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Crankshaft turn in direction of rotation to 14° + 0.5° or 15° ATDC on cylinder 1.
    Socket wrench, 27 mm, 001 589 65 09 00
    Mounting bolts (13, 13a) loosen on injection pump flange and support, tighten to 20-25 Nm (guide value).
    Injection pump move by turning adjustment screw (8) on start of delivery adjustment device. Both lamps "A" and "B" on the tester (008) should light up.
    Direction of rotation of adjustment screw (8):
    Clockwise = retard start of delivery
    Counterclockwise = advance start of delivery
    See table for specified RI value.
    If the adjustment is insufficient, move the injection pump (Removal and installation of injection pump RI 07.1-200 or 07.1-8410).
    Regulating linkage check, adjust, if required (RI 30-300 or 30-1010).
    Leakage check with engine running.
    BASIC AND NATIONAL VERSION WITH EGR EXCEPT USA ONLY RI TEST VALUE

    Engine Production breakpoint RI value (indirect start of delivery ATDC)
    601, 602, 603 as of 1990 14°+0.5°
    NATIONAL VERSION USA ONLY RI TEST VALUE

    Engine Model year RI value (indirect start of delivery ATDC)
    601, 602, 603 1984-1987 15°+0.5°
    as of 1990 14°+0.5°

    Special tools

    Fig 2: Identifying Special Tools 03 07 32 (001 589 65 09 00)
    G05436814Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Adjusting start of delivery with digital tester (governor impulse method) following checking

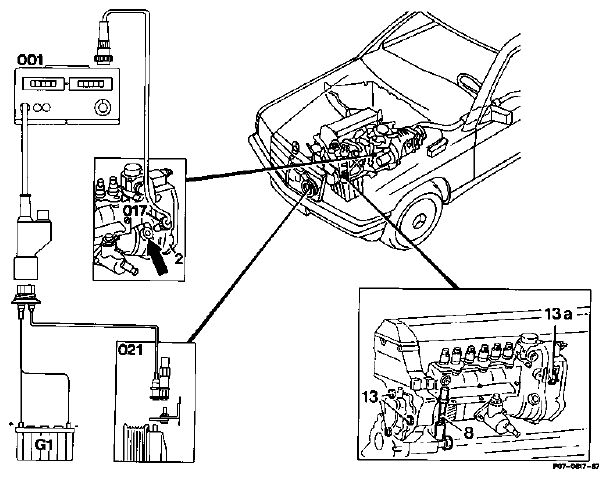

    Fig 3: Adjusting Start Of Delivery With Digital Tester
    G05436815Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Mounting bolts (13 and 13a) on injection pump flange and support, loosen, tighten to 20-25 Nm (guide value).
    RI value (indirect start of delivery) adjust by turning adjustment screw (8) on start of delivery adjustment device, for this purpose allow engine to run at idle, shut off.
    Turning direction of adjustment screw (8):
    Clockwise = retard start of delivery Counterclockwise = advance start of delivery
    See table for specified RI value.
    If the adjustment is insufficient, move the injection pump (Removal and installation of injection pump RI 07.1-200 or 07.1-8410).
    Regulating linkage check, adjust, if required (RI 30-300 or 30-1010).
    Leakage check with engine running.
    BASIC AND NATIONAL VERSION WITH EGR EXCEPT USA ONLY RI TEST VALUE

    Engine Production breakpoint RI value (indirect start of delivery ATDC)
    601, 602, 603 as of 1990 14°+0.5°
    NATIONAL VERSION USA ONLY RI TEST VALUE

    Engine Model year RI value (indirect start of delivery ATDC)
    601, 602, 603 1984-1987 15°+0.5°
    as of 1990 14°+0.5°
