Motor electronics (ME-SFI) fuel injection and ignition system position of components - GF07.61-P-0001-01U
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
On engine

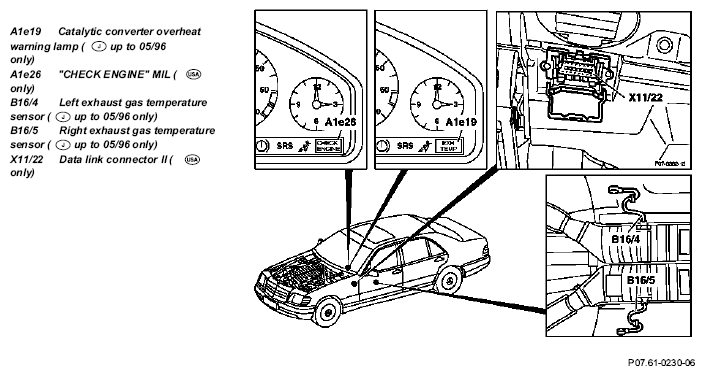

Fig 1: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - On Engine Model 140
On engine

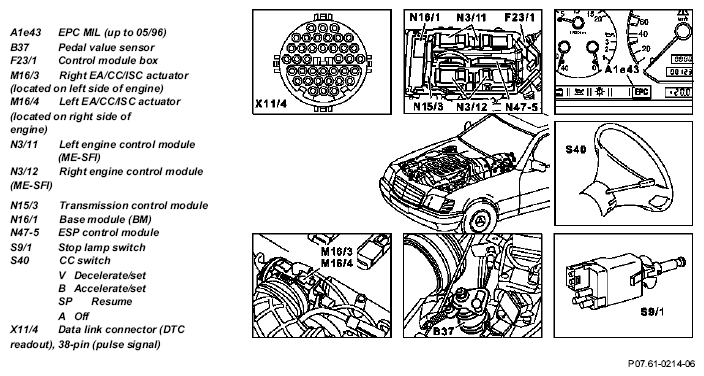

Fig 2: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - On Engine Model 140
On engine

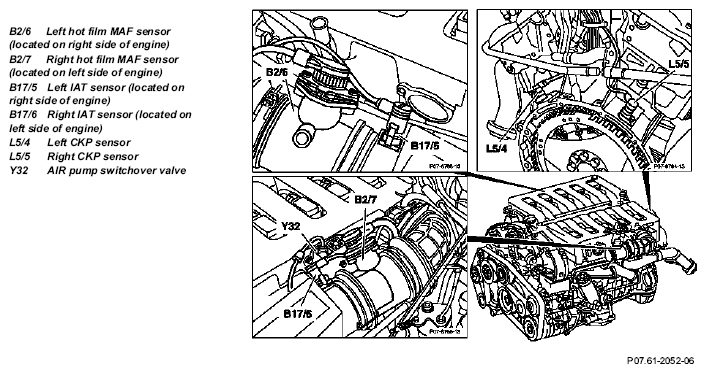

Fig 3: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - On Engine Model 140

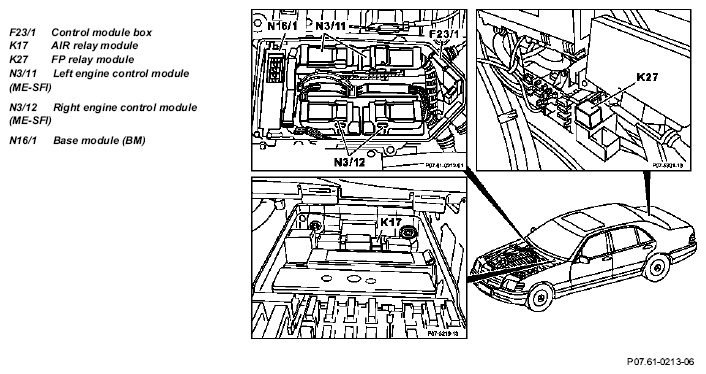

In engine compartment, model 140

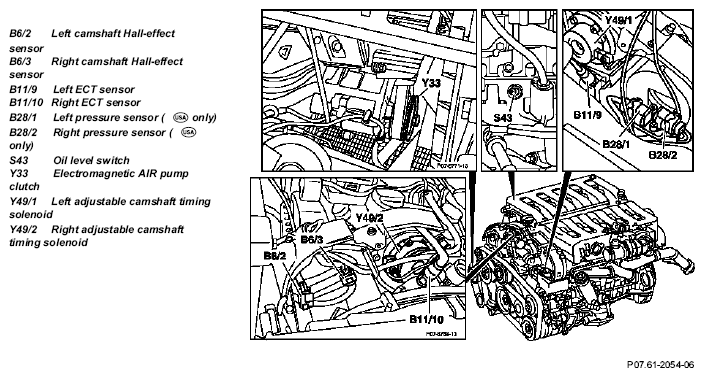

Fig 4: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - In Engine Compartment Model 140
In engine compartment, model 140

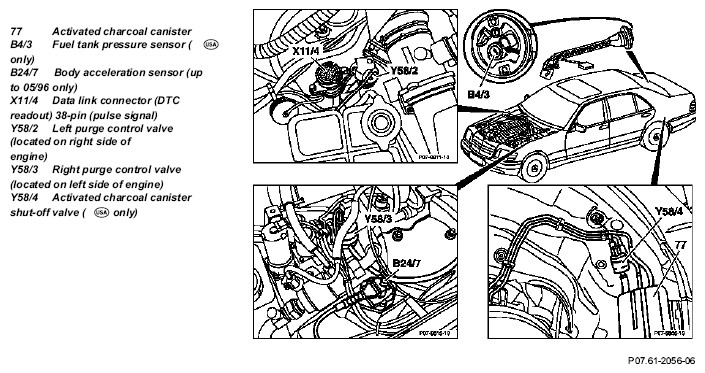

Fig 5: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - In Engine Compartment Model 140
In engine compartment, model 140

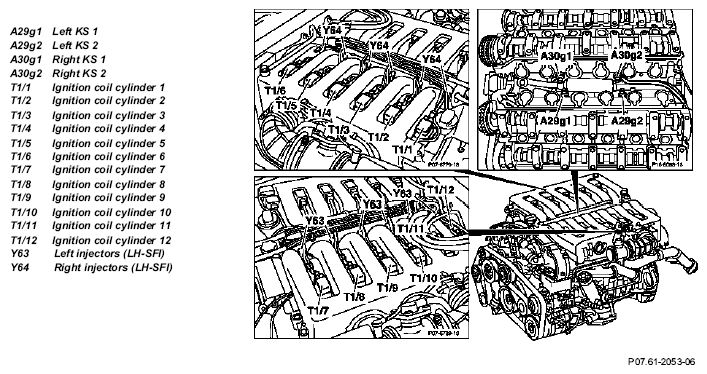

Fig 6: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - In Engine Compartment Model 140
In engine compartment, model 140

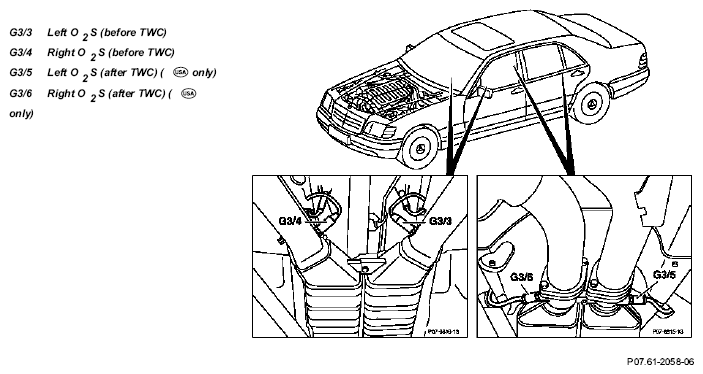

Fig 7: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - In Engine Compartment Model 140
Model 140
