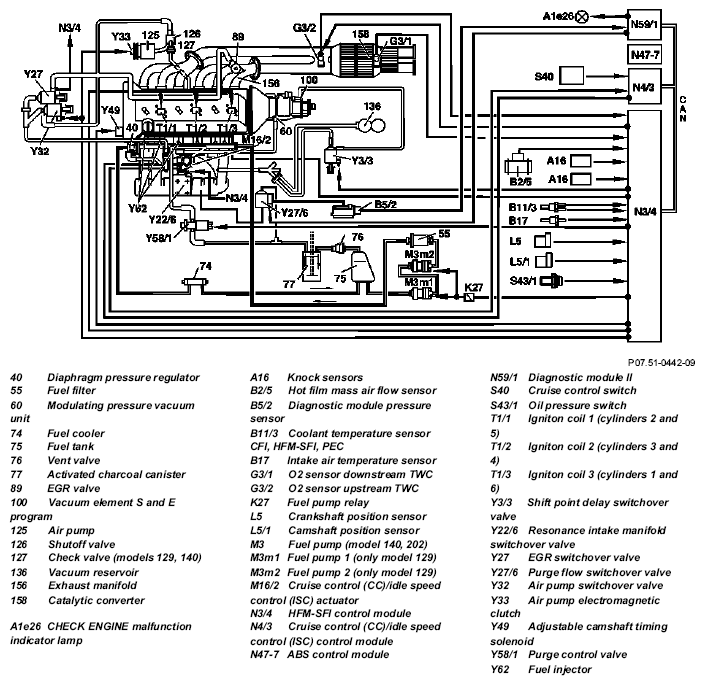

Hot film engine management (HFM-SFI) fuel injection and ignition system function diagram - GF07.51-P-0001-01DC
