Remove/install clutch - AR25.10-P-0050A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129, 163, 140, 170, 202, 208, 210
MODIFICATION NOTES
| 22.9.06 | Setting the adjusting ring back has been omitted |
| Remove/install | |||
| 1 | Remove transmission | Model 129, 140, 170, 202, 208, 210 with transmission 717.4 | AR26.10-P-0020A |
| Model 163.136 | AR26.10-P-0020GH | ||
| Model 163.113 | AR26.10-P-0020GI | ||
| Model 208 with transmission 716.6 and code 424 Sequentronic manual transmission (ASG) | AR26.10-P-0020E | ||
| Model 208.348 /448 without code 424 Model 210 with transmission 716.6 |
AR26.10-P-0020D | ||
| 2 | Remove hexagon socket head screw (9) gradually | ||
| *BA25.10-P-1001-01A | |||
| 3 | Remove pressure plate (6) and clutch plate (5) | Observe the markings on the clutch disc. |
|

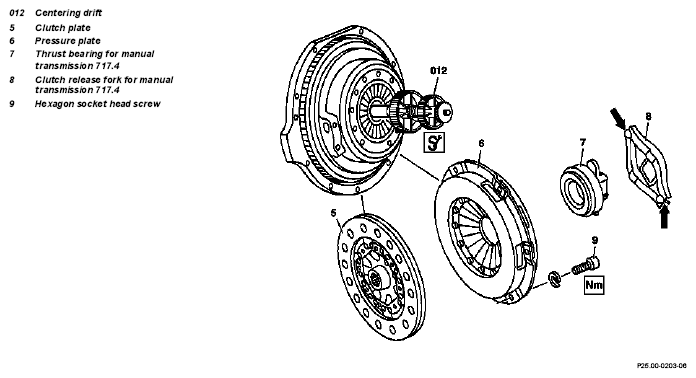

| Fig 2 | |||
| 4 | Check pressure plate (6) and clutch plate (5) | AR25.10-P-0050-01A | |
| 5 | Check flywheel and guide bearing for wear | ||
| 6 | Remove pressure bearing (7) or central clutch release bearing, check for noise and wear and replace if necessary | ||
| 7 | Remove clutch release fork (8) | Only for manual transmission 717.4 |
*BR00.45-Z-1001-06A |
| 8 | Install in the reverse order |
| Number | Designation | Model 129, 140, 163, 170, 171, 202, 203, 208, 209, 210, 211, 230 | |
|---|---|---|---|
| BA25.10-P-1001-01A | Bolt of pressure plate to flywheel or two-mass flywheel | Nm | 25 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | MB long-life grease | 000 989 63 51 |
