Move back adjusting ring of self-adjusting clutch - AR25.10-P-0100-01GC

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

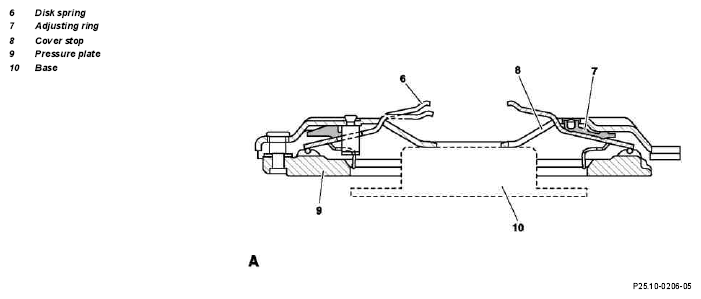

Fig 1: Moving Back Adjusting Ring Of Self-Adjusting Clutch (Picture A)
G04679327Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

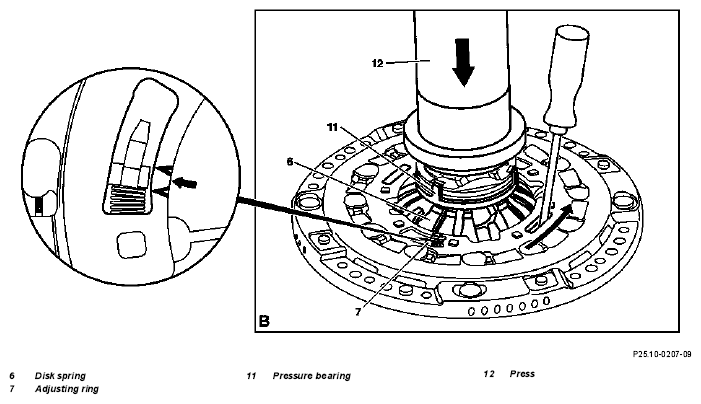

Fig 2: Moving Back Adjusting Ring Of Self-Adjusting Clutch (Picture B)
G04679328Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Picture A

  1. Place cover stop (8) of pressure plate on support (10).

    Picture B

  2. Fit suitable tool (e.g. used thrust bearing (11) of clutch mechanism of manual transmission 717.4) onto spring washer (6).
  3. Using the press (12), press the disk spring (6) carefully in the direction of the arrow until the adjusting ring (7) is free and maintain the pressure.
  4. Using a suitable tool (e.g. screwdriver) through one of the elongated holes, turn back the adjusting ring (7) counterclockwise up to the marking (arrow).
  5. Hold the adjusting ring (7) in the turned-back position and relieve the load on the disk spring (6).
