Checking clutch disk for wear when installed - AR25.10-P-0020A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 129, 140, 163, 170, 202, 208, 210

Fig 1: Checking Clutch Disk For Wear (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Checking Clutch Disk For Wear (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

27.3.98

Heat shield on model 163

Work steps 1.1/2.1 new

AR25.10-P-0020A

	Removing, installing

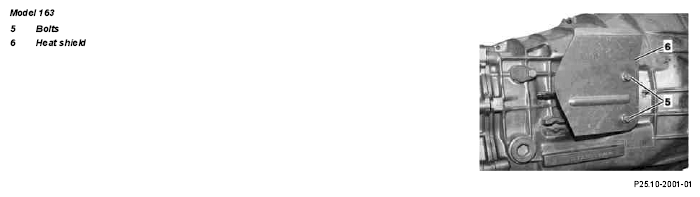

1.1	Unscrew bolts (5) for heat shield (6) and remove heat shield (6)	Model 163
2.1	Install in reverse order	Model 163
	Checking
3	Install in reverse order	If the notch marks on the gauge which has been fully inserted remain visible, the wear limit of the clutch disk has been reached (arrow a). If the notch marks are no longer visible, the clutch disks are in order (arrow b).	Fig 3

Fig 3: Identifying Standard Gauge (115 589 07 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
