Remove/install park pawl mechanism - AR27.60-P-0950A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
 |

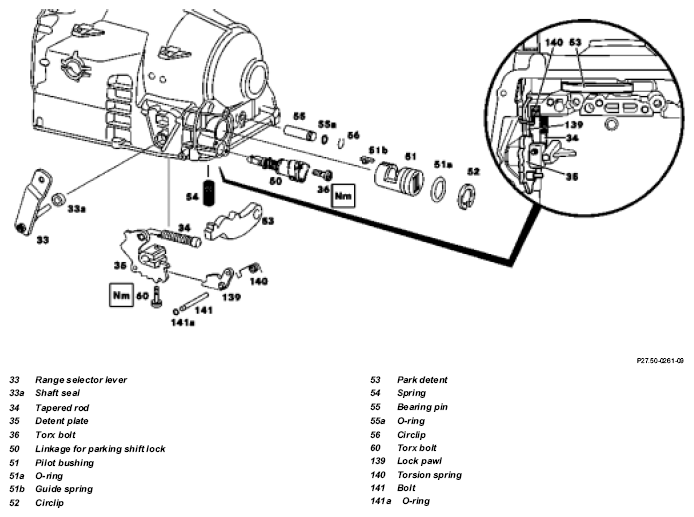

Remove |
|
|
| 1 |
Remove range selector lever; unscrew bolt (60) to do this |
|
|
| 2 |
Remove detent plate with tapered rod (35, 34) |
|
|
| 3.1 |
Undo bolt (36) |
Except model 215, 220 |
|
| 4.1 |
Remove bolt (141) |
Except model 215, 220
Bolt is caulked |
|
| 5.1 |
Pull linkage (50) out of transmission housing and detach lock pawl (139) |
Except model 215, 220 |
|
| 6 |
Remove circlip (52) of pilot bushing (51) |
|
|
| 7 |
Press park detent (53) against spring (54) and press pilot bushing (51) out of transmission housing using a suitable tool |
|
|
| 8 |
Remove circlip (56) and bearing pin (55) |
|
|
| 9 |
Remove park detent (53) with spring (54) |
|
|
 |
Install |
|
|
| 10 |
Insert park detent (53) and spring (54) into transmission housing and install bearing pin (55) with circlip (56) |
Check O-ring (55a) and replace if necessary |
|
| 11 |
Press park detent (53) against spring (54) as far as stop and insert pilot bushing (51) into transmission housing so that the park detent snaps into the recess of the pilot bushing |
Press in pilot bushing until it snaps into place
Check O-ring (51 a) and replace if necessary |
|
| 12 |
Install circlip (52). |
|
|
| 13.1 |
Insert linkage (50) into transmission housing and attach lock pawl (139) |
Except model 215, 220 |
|
| 14.1 |
Install bolt (141) |
Except model 215, 220
Bolt must be caulked on transmission housing side
Check O-ring (141a) and replace if necessary |
|
| 15.1 |
Tighten bolt (36) |
Except model 215, 220 |
|
 |
*BA27.60-P-1001-03A |
| 16 |
Insert detent plate with tapered rod (35 and 34) |
|
|
| 17 |
Mount range selector lever (33) |
Check sealing ring (33a), replace if necessary |
|
|
*BA27.40-P-1006-01A |
Housing
| Number |
Designation |
Transmission 722.6 except 722.660/661/66 2/663/666/674 |
| BA27.40-P-1006-01A |
Bolt, detent plate to range selector lever |
Nm |
8 |
Tightening torques of linkage for parking shift lock
| Number |
Designation |
Transmission 722.6 |
| BA27.60-P-1001-03A |
Bolt, parking shift lock linkage to transmission housing |
Nm |
8 |
