Installation and measurement of multi-disc brake B3 - AR27.50-P-0780-06A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TEST VALUES FOR BRAKE BAND / MULTIPLE DISC BRAKE

Number	Designation		Transmission 722.5
BE27.50-P-1002-02A	Play of multi-disc brake B3	mm	1.5 - 2.0

Fig 1: Identifying Parallel Support (126 589 04 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

A Installation

Arrange multi-discs for multi-disc brake B3 in the order shown in the figure and insert individually.

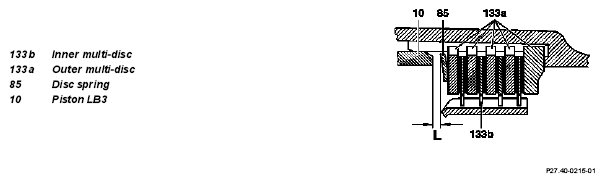

Fig 2: Identifying Inner And Outer Multi-Disc, Disc Spring And Piston LB3
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

B Measuring
Determine dimension "a" by placing parallel support (029) on the machined surface.
Using the depth gauge, measure to the outer edge of the Belleville spring washer (85).

Fig 3: Identifying Dimension a
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Determine dimension "b" by placing the parallel support (029) on the piston of the multi-disc brake (arrows).
Using the depth gauge, measure to the gasket (11).

The difference between the two measurements gives the play "L".
Adjust the play "L" with the various thicknesses of outer multi-discs (133b) available.

Outer multi-discs (133b) are available as a spare part in thicknesses of 2.3, 2.8, 3.3 and 3.8 mm.

Fig 4: Identifying Dimension B
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Lubricate groove in the drive shaft (87).
Insert lubrication pressure ring (99).

Press into the groove so that the joint meets.

Fig 5: Identifying Drive Shaft And Lubrication Pressure Ring
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
