Checking installed position of lubricating nozzle in support flange/oil gallery K2 - AR27.50-P-0780-12A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
AG 722.5
Before installing the support flange (79) in the transmission housing check whether the lubricating nozzle (arrow) is installed in the support flange.

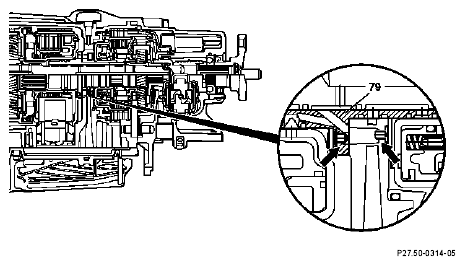

The illustration shows the installed position of the lubricating nozzle in the support flange (79) and the position of the support flange in installed condition.
