Dismantling and assembling transmission (section 3) - AR27.50-P-0720A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.5
| Dismantling, assembling | |||
| 1 | Dismantling transmission (section 1) | AR27.50-P-0600A | |
| 2 | Dismantling transmission (section 2) | AR27.50-P-0620A | |

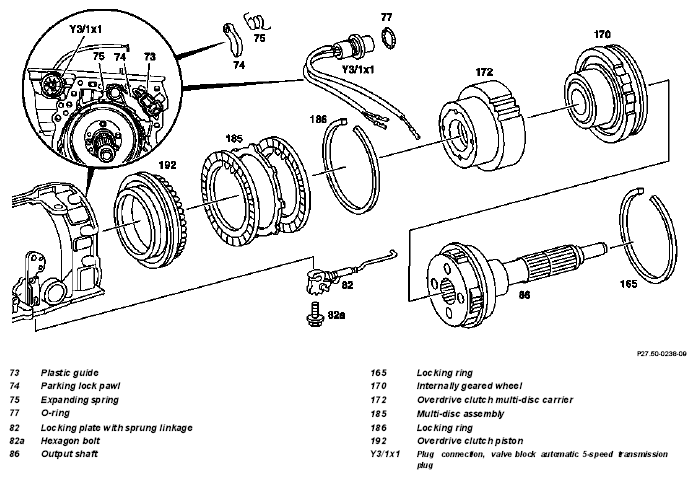

| 3 | Remove expanding spring (75) and pull off parking lock pawl (74) | ||
| 4 | Withdraw plastic guide (73) | ||
| 5 | Remove locking plate (82) with sprung linkage | ||
| *BA27.50-P-1002-01A | |||
| 6 | Withdraw plug (Y3/1x1) for solenoid valves and O-ring (77) from transmission housing | ||
| 7 | Remove overdrive brake (overdrive brake) and clutch (overdrive clutch) | AR27.50-P-0740A | |
| 8 | Assemble in reverse sequence | ||
| 9 | Dismantling and assembling transmission (section 4) | AR27.50-P-0780A |
| Number | Designation | Transmissions 722.3/4/5 | |
|---|---|---|---|
| BA27.50-P-1002-01A | Bolt, detent plate to transmission housing | Nm | 8 |
