Lifting damper housing with the intermediate plate - AR27.35-P-0340-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
REFER TO COMPONENT MODIFICATIONS Small intermediate plate modified Transmission 722.5 BT27.35-P-0001-01A
  1. Carefully lift damper housing (B) with intermediate plate (4) off the shift valve body (A).

    IMPORTANT Ensure parts do not fall out.

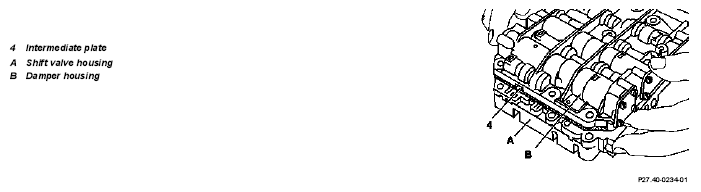

    Fig 1: Identifying Damper Housing, Intermediate Plate And Shift Valve Body
    G04679384Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
