Assembling and measuring overdrive clutch - AR27.51-P-0760-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TEST VALUES OF MULTI-DISC CLUTCH

Number	Designation		Transmission 722.5
BE27.51-P-1001-01A	Play in overdrive multi-disc clutch	mm	1.5 - 2.1

Fig 1: Identifying Sleeve (129 589 00 14 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Assembly Device (201 589 12 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

A Assembling

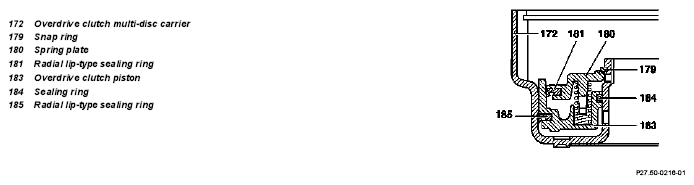

Fig 3: Sectional View Of Overdrive Clutch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Insert sleeve (023) in multiple-disc carrier (172).

Check radial lip-type sealing ring (185) and sealing ring (184) for wear, if necessary replace and lubricate with ATF oil. When assembling, ensure that the lips of the radial lip-type sealing rings (181) and (185) point downwards.
Insert piston (183) carefully and without canting it over.
Remove sleeve (023).

Fig 4: Identifying Sleeve, Multiple-Disc Carrier And Piston
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert all 18 or 19 return springs (182) in the guide pilot of the piston (183).
Insert sleeve (024) in multiple-disc carrier (172).
Lubricate radial lip-type sealing ring (181) with ATF oil and mount on spring plate (180).
Mount spring plate (180).

Fig 5: Identifying Return Springs And Radial Lip-Type Sealing Ring
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Place snap ring (179) on the spring plate.
Mount and clamp assembly device (020)
Insert snap ring (179).

Ensure correct seating.
Unclamp and remove assembly device (020).

Fig 6: Identifying Snap Ring And Assembly Device
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Arrange multi-discs for overdrive clutch in the order shown in the figure and insert individually.

Before assembly, place new multi-discs in ATF oil for 1 hour.
Remove sleeve (024)

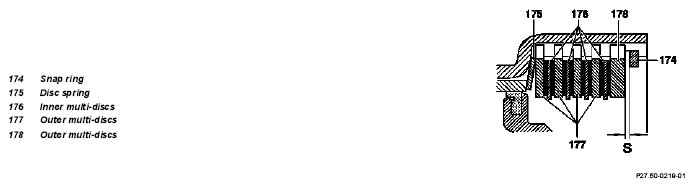

Fig 7: Identifying Outer And Inner Multi-Discs
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

B Measuring
Using a feeler gauge, measure play KS "S" and adjust with snap ring (174), if necessary.

The snap ring is available as a replacement part in thicknesses of 2.0, 2.5, 3.0 and 3.5 mm.
