Assembling piston guide and outer multiple-disc carrier of multiple-disc brake - AR27.50-P-0880-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

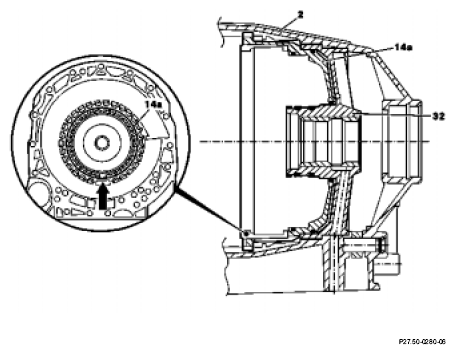

Fig 1: Identifying Piston Guide And Outer Multiple-Disc Carrier Of Multiple-Disc Brake
G04606602Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Insert piston guide (32) in transmission housing (2) and tighten securely.
  2. Press in outer multiple-disc carrier/B2 (14a) up to the stop in the piston guide (32).

    NOTES The recess in the external splines or the opening in the outer multiple-disc carrier/B2 (14a) must point downwards (arrow).

  3. Remove assembled component from transmission housing again for further assembly work.
