Dismantling and assembling gear set - AR27.50-P-0840A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.5

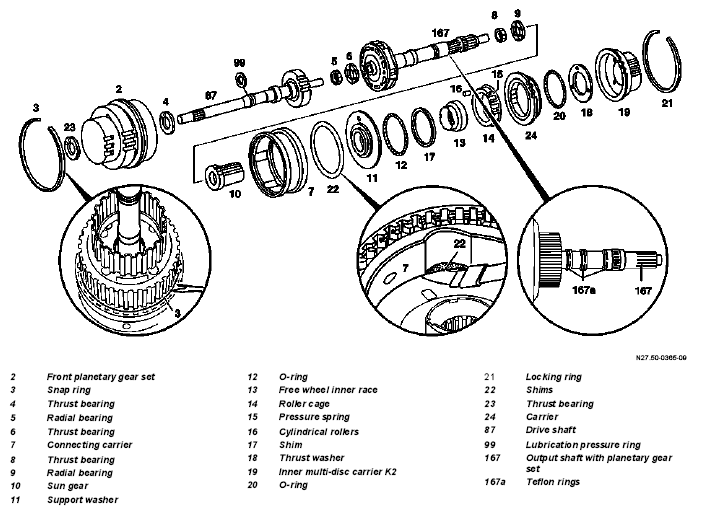

| Disassembly, assembly | |||
| 1 | Disassembling transmission (section 4) | AR27.50-P-0780A | |
| 2 | Remove lubrication pressure ring (99) | ||
| 3 | Remove Teflon rings (167a) from intermediate shaft (167) | ||
| 4 | Place gear set assembly with intermediate shaft (167) in assembly device | Figure | |
| 5 | Use a screwdriver to remove snap ring (3) | ||
| 6 | Lift front planetary gear set (2) and remove thrust bearing (23) | ||
| 7 | Remove thrust bearing (4) and drive shaft (87) | ||
| 8 | Remove radial bearing (5) and thrust bearing (6) | ||
| 9 | Remove output shaft with planetary gear set (167) | ||
| 10 | Remove radial bearing (8), thrust bearing (9) and sun gear (10) | The freewheel must lock up in the direction of the arrow; then fit thrust bearing (9) on sun gear |
|
| 11 | Remove and check freewheel F2 | AR27.50-P-0860A | |
| 12 | Assemble in the reverse sequence |
