Dismantling and assembling bottom cover - AR27.35-P-0400A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.5

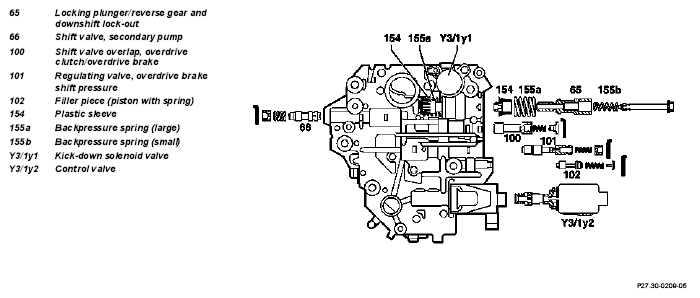

Fig 1: Identifying Bottom Cover Dismantling And Assembling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

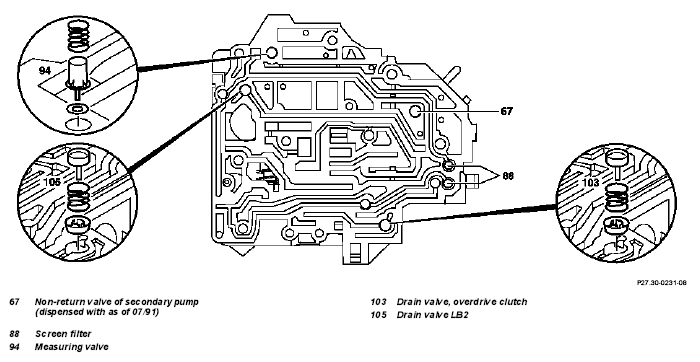

Fig 2: Identifying Screen Filter, Measuring Valve And Drain Valve LB2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure item etc.	Notes on work
	Before installing, check all parts for wear.	Replace, if necessary.
