Disassemble/assemble clutch K1 - AR27.51-P-0800B: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSIONS 722.6

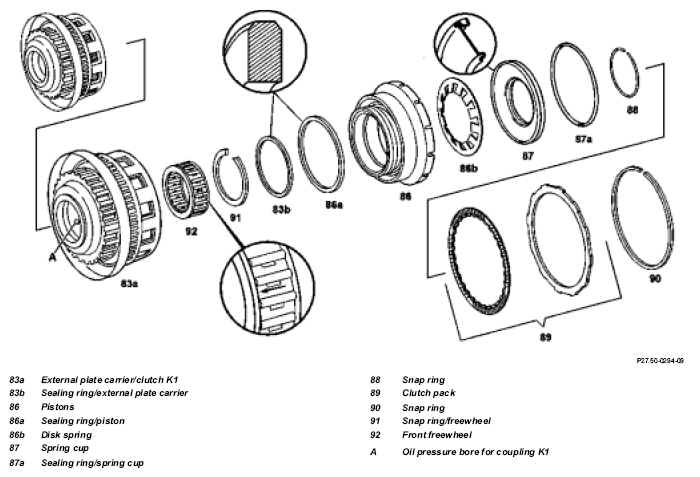

Fig 1: Identifying Clutch K1 Components
G04606618Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

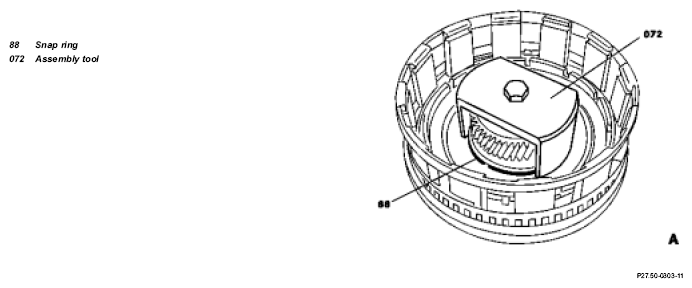

Fig 2: Identifying Snap Ring, Assembly Tool
G04606619Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Modification notes

25.8.98 New special tool for clearance adjustment   AR27.51-P-0800-02A
16.9.02 Disks for B1, K1 and K3 changed Transmission 722.6 as from 02.09.02, see work step 12. BT27.50-P-0013-01A
DISASSEMBLING Disassemble
1 Remove snap ring (90) from outer multiple-disc carrier
2 Take multiple-disc pack (89) out of outer multiple-disc carrier NOTES Check multi-disks for scorch marks and wear.
3 Place assembly device (072) on spring plate (87) and tension until the snap ring (88) is exposed (figure A)  SPECIAL TOOL Assembly device Figure
4 Remove snap ring (88)
5 Take out disk spring (86b) and remove piston (86) by carefully blowing compressed air into the bore (A) (figure B)  .
6 Remove snap ring (91) and take out front freewheel (92). IMPORTANT According to condition.
ASSEMBLING Assemble
7 Install piston (86) in outer multiple-disc carrier INSPECT Check sealing rings (83b and 86a), replace if necessary.
NOTES The rounded off edges of the sealing rings must face outwards

8 Insert disc spring (86b). NOTES Insert disk spring with the curvature towards the piston
9 Insert spring plate (87). NOTES Insert spring cup with curvature towards sun gear.
10 Place assembly device (072) on spring plate (87) and tension until the groove of the snap ring is exposed SPECIAL TOOL Assembly device
INSPECT Check sealing ring (87a), replace if necessary
Figure
11 Insert snap ring (88) NOTES After installing, check snap ring for correct seating
12 Insert multiple-disc pack (89) in the outer multiple-disc carrier and measure NOTES Observe externally-toothed plate sequence. Insert and measure disk pack K1: ↓
    Transmission 722.6 up to 01.09.02 AR27.51-P-0800-02AA
    SPECIAL TOOL Thrust device Figure
    Play in multiple-disc clutch K1 *BE27.51-P-1001-01B
    Transmission 722.6 as of 02.09.02 AR27.51-P-0800-02A
    SPECIAL TOOL Thrust device Figure
    Play in multiple-disc clutch K1 *BE27.51-P-1001-01B
REFER TO COMPONENT MODIFICATIONS Strength of steel disks B1, K1 and K2 changed Transmission 722.6 BT27.51-P-0002-01A
REFER TO COMPONENT MODIFICATIONS Disks for B1, K1 and K3 changed Transmission 722.6 as of 02.09.02 BT27.50-P-0013-01A
REFER TO BASIC KNOWLEDGE Survey of multi-disk components, production details Transmission 722.6 GF27.51-P-5200A
13 Insert snap ring (90)
14 Insert front freewheel (92) and fit snap ring (91) IMPORTANT The freewheel (92) must be installed in direction of arrow
IMPORTANT Continuing operation, see: ↓
Remove/install K1, K2 and K3 AR27.50-P-0621A
Adjustment values of multi-disk clutch

Number Designation Transmission 722.6 up to 01.09.02 with double sided multiple-discs Transmission 722.6 as of 02.09.02 with single-sided multiple-discs
BE27.51-P-1001-01B Play in multiple-disc clutch K1 Number of multiple-discs 3 mm 2.70...3.10 2.40...2.80
4 mm 3.00...3.40 2.60...3.00
5 mm 3.30...3.70 2.80...3.20
6 mm 3.60...4.00 2.90...3.30
