Adjust shift lock - AR27.60-P-0910A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.60/610,

722.610/611 up to 30.11.00,

722.612 /613 /62 (except, 722.626 /628),

722.630 up to 30.11.00,

722.631 /66 /645

Shown at center shifter console of model 140

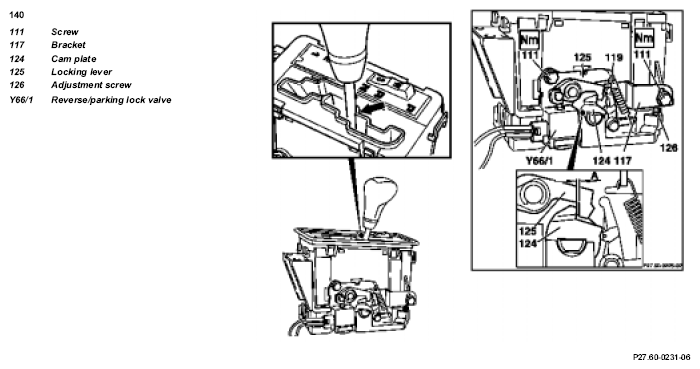

Fig 1: Identifying Adjust Shift Lock - Shown At Center Shifter Console Of Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Adjust
1	Move selector lever into neutral position	The selector lever must make contact with the shift gate (arrow).
2	Apply battery voltage of 11 V up to 14 V to the reverse/parking lock valve (Y66/1)	Use the connecting cable from the electrical connection kit.	Fig 2
3	Loosen bolt (111)
4	Adjust gap (A) between locking lever (125) and disk cam (124) using adjuster screw (126)	The adjusting screw (126) must contact the bracket (117) with no gap	*BE27.60-P-1001-01A
5	Tighten screw (111)		*BA27.60-P-1003-02A

Shift lock test values

Number	Designation			Transmission 722.6
BE27.60-P-1001-01A	Gap dimension "a" between locking lever and disk cam		mm	0,2
BE27.60-P-1001-01A	Gap dimension "a" between locking lever and disk cam	Figure see		AR27.60-P-0910A

Tightening torques for floor shift

Number	Designation		Transmission 722.6
BA27.60-P-1003-02A	Bolt for bracket to shift lock on bearing bracket upper section	Nm	3.5

Fig 2: Identifying Electrical Connection Set (201 589 00 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
