Testing and adjusting vacuum control valve, engine 603.96 - RA27037220140X(27-140)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
| Test condition | Throttle control correctly set. |
| Engine | Run up to operating temperature. |
| Vacuum line | Detach, connect vacuum tester 201 589 13 21 00 and test vacuum at idle. Specified value : 385 ± 25 mbar |
| Engine | Switch off and move throttle linkage to full-load stop. Test vacuum. Specified value 0 mbar. If the specified values are not reached:
|

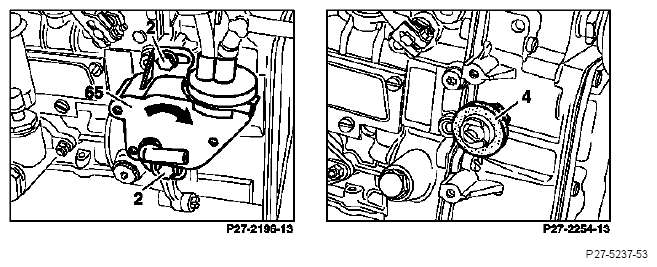

| Hexagon bolts (2) | Slacken; open throttle fully so that control lever of injection pump rests against full-load stop. |
| Vacuum control valve (65) | Rotate in direction of arrow until resistance is felt. Tighten hexagon bolts (2) in this position. |
NOTE:
Since July 1994, a modified vacuum control valve has been installed on which the driver is spring loaded axially.
A cup seal (4) is installed with the modified vacuum control valve which prevents dust and dirt entering the vacuum control valve.
The air cleaner and housing for routing the air must be removed on vehicles with engine 603.96 for checking and adjusting (for vacuum line diagrams, see Repair Instructions, Engine, Combustion).
Special tool
