Removing and installing vacuum box - RA27037220425X(27-425)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Operation number of the operation texts and work units or standard texts and flat rates:
27-6060

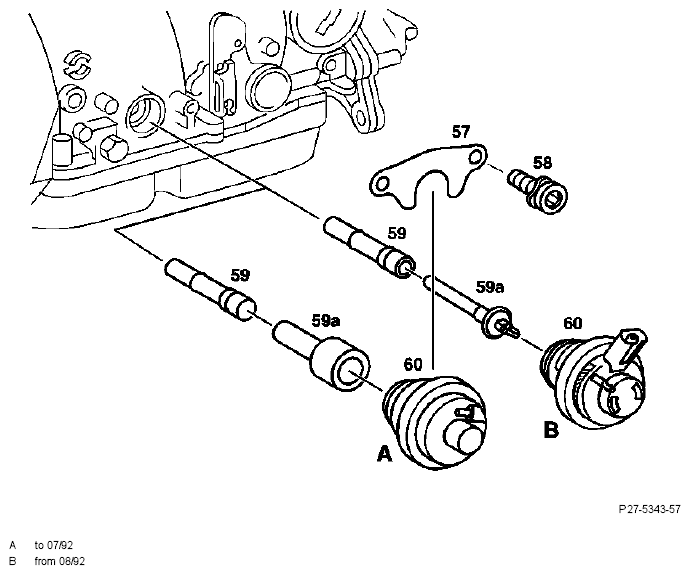

| Hexagon socket bolts (58) | Unscrew, screw in, 8 Nm. Remove retaining plate (57). |
| Vacuum cell (60) | Remove, check or adjust modulating pressure after installation (see Measure and adjust pressure value ). |
| Modulating pressure valve (59) and pressure pin for heat expansion compensation (59a) | Remove, install, check smoothness of operation. |
