Hydraulic system 4th - 5th gear (722.5) - RA27057229190X(27-9190)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

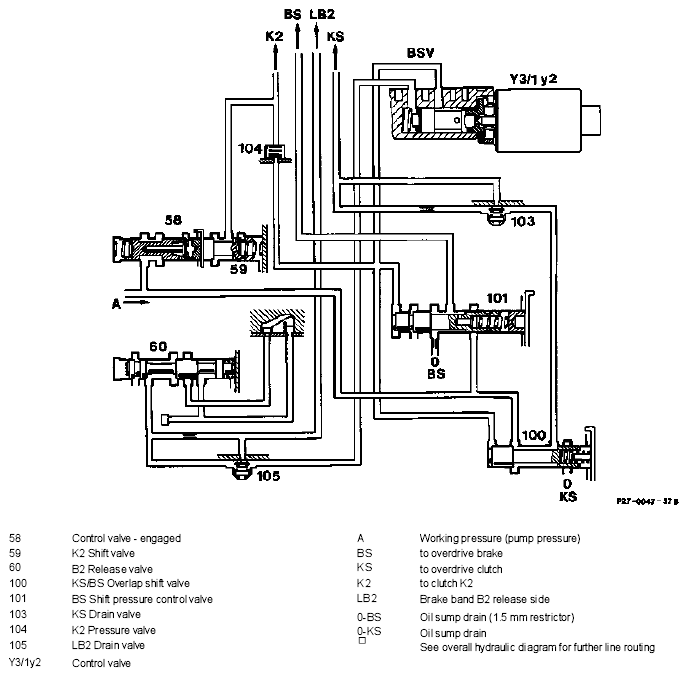

Hydraulic system 4th gear

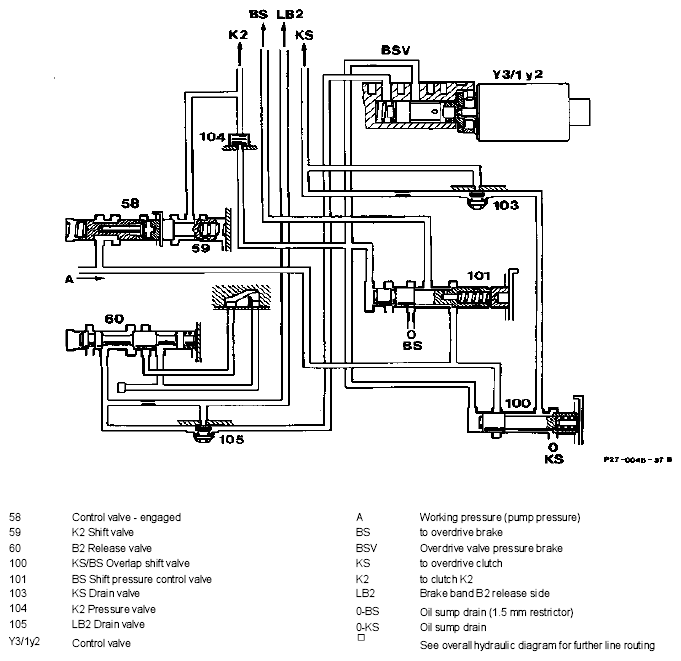

Hydraulic system 5th gear
After the engine is started, clutch KS is operated with the hydraulic oil pumped by the primary pump, irrespective of the selector lever position, and remains engaged up to 4th gear or in reverse gear. After a 4 → 5 gearshift is initiated, clutch KS is disengaged and brake BS engaged by means of a modulated pressure. The shift pressure "BS" is controlled by the control valve and set at the shift pressure control valve BS (101).
Bottom cover
The hydraulic oil for engaging and disengaging clutch KS and brake BS is controlled by additional slide valves and control valves in the bottom cover. The slide valves and control valves perform the following tasks:
- The KS/BS overlap shift valve (100) disengages the clutch KS once a certain pressure level is set by the control valve (Y3/1y2) and thus prevents clutch KS and brake BS being excitated simultaneously.
- The BS shift pressure control valve (101) controls the pressure to the BS shift element as a function of the pressure of the control valve.
- The function of the pressure valve K2 (104) is to harmonize the pressure between the K2 and BS shift elements in the event of a 5 → 3 downshift. This valve is located in the transmission housing (oil distribution plate).
- The drain valve LB2 (105) opens for draining the brake band B2 release side in the event of a 4 → 3 downshift (bypassing the filling restrictor LB2).
- The drain valve KS (103) opens for draining clutch KS in the event of a 4 → 5 upshift to enable the clutch KS to be rapidly disengaged (bypassing the filling restrictor KS).
