Dismantling, assembling and measuring clutch K2 - RA27037220690X(27-690)
Operation number of the operation texts and work units or standard texts and flat rates:
27-4190

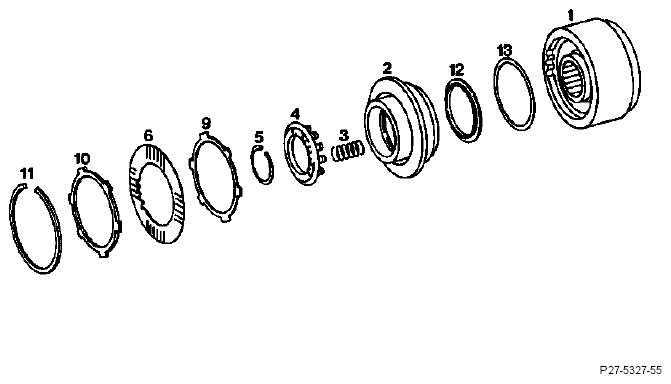

| Snap ring (11) | Remove and install using a screwdriver (item 1). |
| Discs (6, 9, 10) | Remove and install in outside disc carrier (1) complete; assemble in correct sequence according to transmission diagram (item 2). After installing, measure clearance "A" and adjust to 0.7 - 1.2 mm (item 6). |
| Snap ring (5) | Remove, install by compressing spring seat (4) in assembly device 126 589 00 43 00 until snap ring is accessible (item 3). |
| Spring seat (4) and compression springs (3) | Remove, note number of springs (item 4). |
| Plunger (2) | Pull out. When installing, insert plunger using inserter 126 589 02 14 00; check lip sealing rings (12 and 13) and replace if necessary. Install with sealing lips downwards (item 5). |
| O-ring in outside disc carrier (1) | Check for leaks using kerosene or benzine; renew outside disc carrier in the event of leaks. |
Special tools
| Transmission | Number | Wire dia. in mm | Uncompressed length approx. mm |
|---|---|---|---|
| 722.3 | 24 | 0,8 | 39 |
Sequence of clutch discs
Transmission 722.347
Transmission 722.345 722.358
722.346 722.359
722.348 722.361
722.351 722.363
722.352 722.367
722.354 722.368
722.355 722.369
722.357
Transmission 722.350 722.364
722.353 722.365
722.354 722.366
722.356 722.370
722.362 722.371
| Designation | Item No. | Thickness in mm |
|---|---|---|
| Inside disc | 6 | 2,1 |
| 7 | 2,0 | |
| 8 option for compensating play | 3,5 or 4,0 | |
| 10 option for compensating play | 4,5 or 5,0 | |
| Plunger | 2 | - |
| Snap ring | 11 | 2,0 |
| 2,5 | ||
| 3,0 |
| Clearance "A" of disc clutch in mm Discs compressed with 10 N |
0,7-1,3 |
Dismantling and assembling

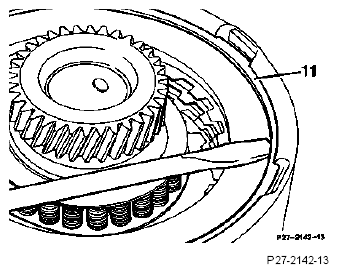

- Remove snap ring (11).
Installation note
After inserting, press snap ring upwards around entire circumference using a screwdriver.

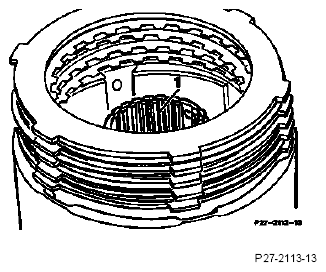

- Tilt outside disc carrier (1) and remove discs.
Check inside discs for scorching and wear (reference thickness 2 mm).
Installation note
Note sequence of clutch discs. Assemble discs as described in transmission diagram. Before installing, immerse in ATF for approx. 1 hour.

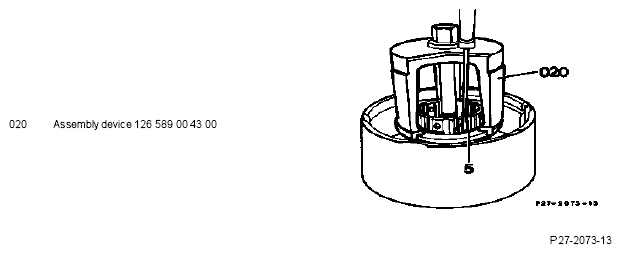

- Attach assembly device (020) to spring seat and clamp until snap ring (5) is accessible.
Remove snap ring.
Installation note
Check that snap ring is correctly seated after installation.

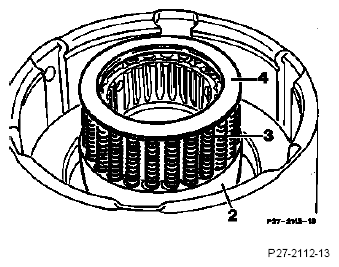

- Remove spring seat (4) and compression springs (3).
Installation note
Note number of return compression springs and ensure that each spring is centered by one guide lug on the spring seat.
- Pull plunger (2) out of outside disc carrier (1).NOTE: Check O-ring between outside disc carrier and plunger guide ring for leaks. To do this, fill the plunger guide ring with a little kerosene or benzine. Then observe whether the fluid leaks out.
In the event of leaks, replace the outside disc carrier.
Installation note

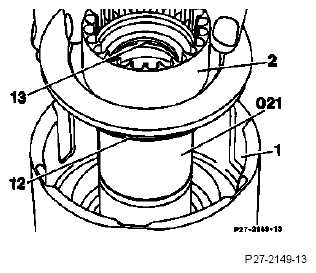

Check sealing rings (12, 13) for wear or damage and replace if necessary. Insert sealing rings (12, 13) ensuring that the rings are not twisted and that they point downwards (in direction of arrow).

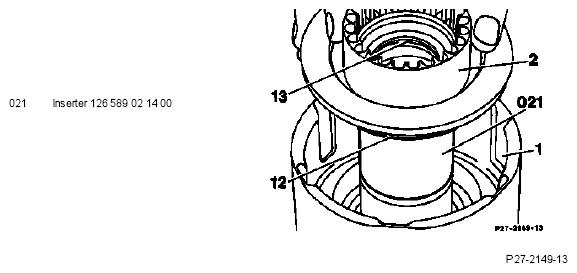

Place inserter on outside disc carrier (1). Lubricate inserter (021) and sealing rings (12, 13) with ATF and then carefully insert plunger (2) into outside disc carrier. Press down plunger without tilting, whilst rotating plunger gently.

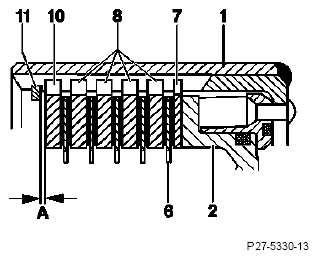

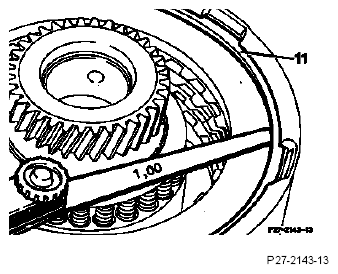

- Determine clearance "A" using a feeler gauge. Adjust clearance to 0.7 - 1.3 mm.NOTE: Adjust clearance "A" using the snap ring available in 3 thicknesses (2.0, 2.5, 3.0 mm). The groove for the snap ring is 3.2 mm wide. If the specified clearance "A" is not achieved using the snap ring (11), the middle outside discs must also be used to correct the clearance.
