Adjusting shift rod - RA2703722A120X(27-120)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation number of the operation texts and work units or standard texts and flat rates:

27-1280

Models 124 without 4MATIC, 126, 129, 140

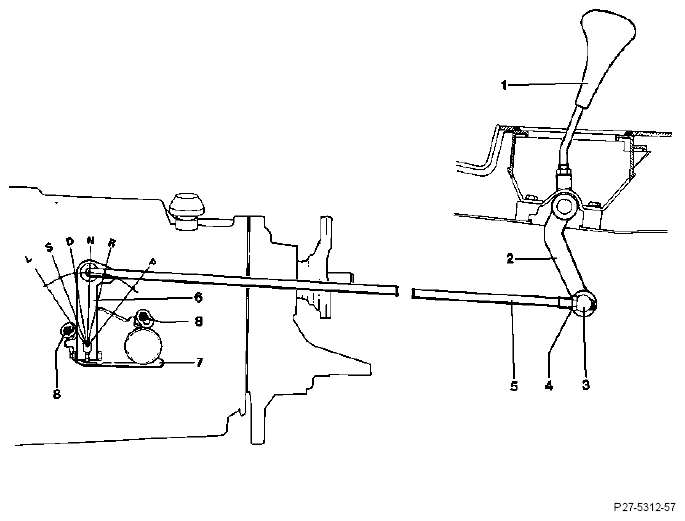

Fig 1: Identifying Shift Rod (Models 124 Without 4MATIC, 126, 129, 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	NOTE: Park vehicle on a level surface
Shift rod (5)	Unhook at selector lever (2).
Range selector lever (6)	Move to position "N".
Lock nut (4)	Slacken.
Shift rod (5)	Adjust length so that there is approx. 1 mm clearance between the selector lever (1) and the "N" stop on the shift gate.
Shift rod (5)	Hook up.
Lock nut (4)	Tighten securely.
