Adjusting cable for control pressure - RA27037220110X(27-110)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation number of the operation texts and work units or standard texts and flat rates:

27-1250

Adjusting

The engine throttle control must be correctly adjusted.

Vehicles with engines 103 and 603.96

Detach ball socket (19) and pull control pressure cable forwards until slight resistance can be felt. In this position, hold the ball socket over the ball head and attach; if necessary, adjust by means of the adjusting screw (15).

Fig 1: Identifying Ball Socket Screw (Engine 103.98)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Ball Socket Screw (Engine 603.96)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vehicles with engines 116 and 117

Remove air cleaner.
Slacken clamping screw (6) on connecting rod (8).
Extend connecting rod (8) and compress again until slight resistance can be felt. Then tighten clamping screw (6).
Refit air cleaner.

Fig 3: Identifying Slacken Clamping Screw, Extend Connecting Rod
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vehicles with engine 104

Remove air cleaner.
Control pressure cable attached. Adjust control pressure cable (98) by turning adjusting screw (15) until the tips of the needles are in alignment.

Fig 4: Identifying Control Pressure Cable, Turning Adjusting Screw (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

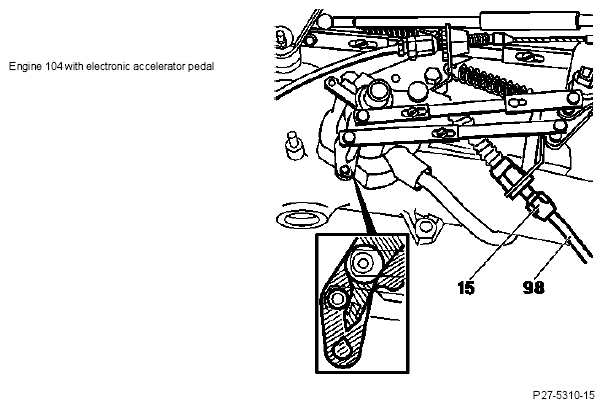

Fig 5: Identifying Control Pressure Cable, Turning Adjusting Screw (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vehicles with engine 119

Remove air cleaner.
Turn adjusting screw (15) on Bowden cable (98) until the pointer of the spacer sleeve (17) aligns with the adjusting screw.

Fig 6: Identifying Adjusting Screw, Bowden Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vehicles with engine 119.97

Remove air cleaner.
Slacken hexagon nuts (6) on connecting rod (8).
Turn connecting rod (8) until the tips of the needles are in alignment.
Tighten hexagon nuts (6).

Fig 7: Identifying Slacken Hexagon Nuts, Connecting Rod, Hexagon Nuts
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 120

Remove air cleaner. Turn adjusting screw (15) to adjust control pressure cable (98) until the tips of the needles are in alignment.

Fig 8: Identifying Control Pressure Cable

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
