Strainer for modulating pressure and shift pressure control solenoid valve, new - BT27.35-P-0004-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 722.6

TRANSMISSION 722.6## ## as of 0538312

Strainer to protect against dirt and metal shavings for the modulating pressure and shift pressure control solenoid valves in the valve housing.

As a result also new control solenoid valves with a new part number.

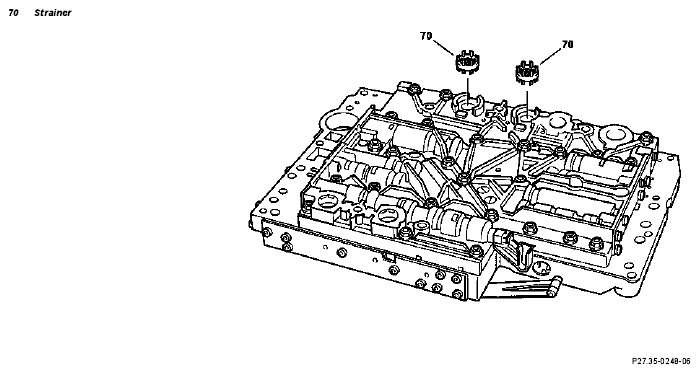

Fig 1: Identifying Strainer For Modulating Pressure And Shift Pressure Control Solenoid Valve - Transmission 722.6
G04633134Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
