Plain bearing of input shaft changed to an anti-friction bearing - BT27.50-P-0002-02A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.60# /61# /660 /662 /664 /665 /69# ## as of 1317917 as of 7.1.99, 722.62# /63# /661 /663 /666 /669 ## as of 1324240 as of 12.1.99

The plain bearing in the input shaft was replaced by an anti-friction bearing (needle bushing).

As a result, the inside diameter of the needle bushing in the input shaft and the outside diameter of the journal at the output shaft have also changed.

When repairing a vehicle, therefore, both shafts must be replaced.

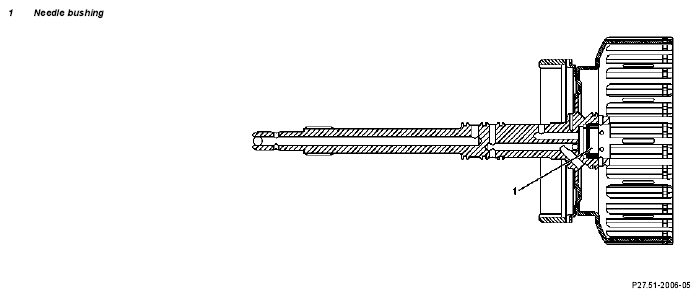

Fig 1: Identifying Needle Bushing - Transmission 722.60# /61# /660 /662 /664 /665 /69# ## As Of 1317917 As Of 7.1.99, 722.62# /63# /661 /663 /666 /669 ## As Of 1324240 As Of 12.1.99
G04633138Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
