Upshift / downshift solenoid valve, location / task / design / function - GF27.19-P-4006G
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6

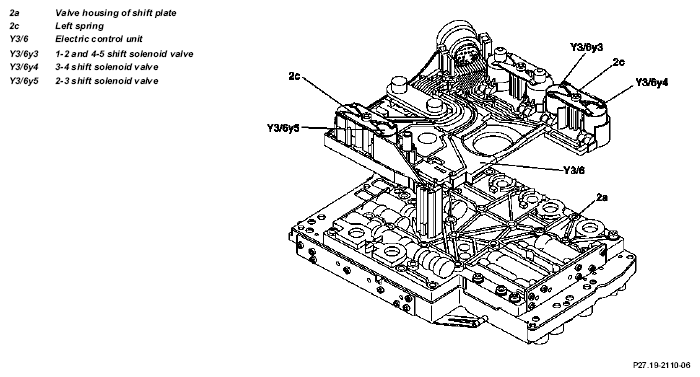

| Upshift/downshift solenoid valve, location | In the shell of the electric control unit and pressed against the shift plate with a spring. | ||
| Upshift/downshift solenoid valve, task | The shift solenoid valves (Y3/6y3, Y3/6y4, Y3/6y5) introduce the sequence of upshifts and downshifts in the shift plate. | ||
| Upshift/downshift solenoid valve, design | GF27.19-P-4006-03G | ||
| Upshift/downshift solenoid valve, function | GF27.19-P-4006-04G |
