Starter lock-out contact, location/task/design/function - GF27.19-P-5106G

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6

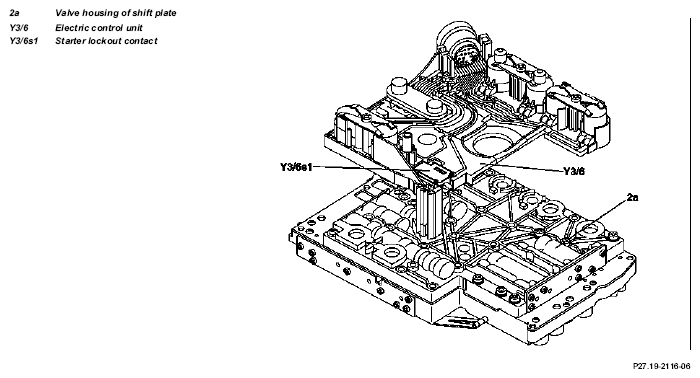

Fig 1: Identifying Starter Lock-Out Contact Location
G04606423Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  Starter lockout contact, location The starter lockout contact (Y3/6s1) is located in the electrical control unit (Y3/6) and is permanently connected to the conductor tracks.
  Starter lockout contact, task To recognize selector valve and selector lever position "P" and "N".
  Starter lockout contact, design The starter lockout contact (Y3/6s1) consists of:
  • a plunger
  • a permanent magnet
  • a reed contact

  Starter lockout contact, function   GF27.19-P-5106-01G
