Shift detent mechanism, location/task/design/function - GF27.60-P-5101G

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6 in MODEL 163, 170, 202, 208, 210

without touch shift

TRANSMISSION 722.6 in MODEL 129, 140

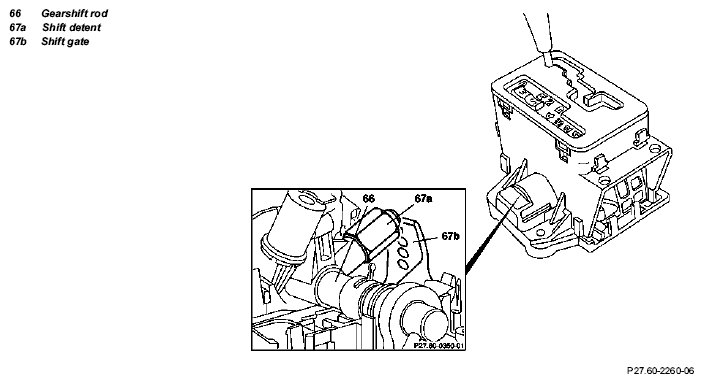

Fig 1: Identifying Gearshift Rod, Shift Detent And Shift Gate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Shift detent, location	The shift detent is integrated into the floor shift.
	Shift detent, task	Fixing the selector lever positions "4", "3", "2", "1".
	Shift detent, design	The shift detent consists of a detent (67a) containing a spring-loaded ball and the shift gate (67b) with recesses arranged one under another.
	Shift detent, function	When the selector lever is moved between the selector lever positions "4", "3", "2", "1" the shift detent (67a) locks in position in one of the four recesses in the shift gate (67b).
