Planetary gear set, location / task / design / function - GF27.50-P-5100G
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6

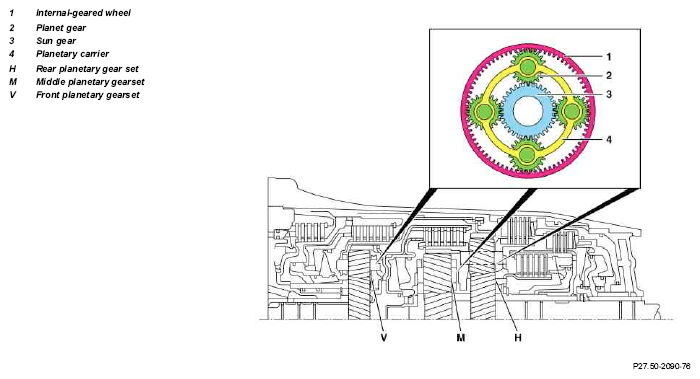

| Planetary gear set, location | Three planetary gear sets are used to produce the different gear ratios. These are located in the mechanical part of the transmission as the front, center and rear planetary gear set (V, M, H) | ||
| Planetary gear set, task | Power transmission and production of different gear ratios. | ||
| Planetary gear set, design | A planetary gear set consists of the ring gear (1), the planet gears (2) carried in the planet carrier (4) and the sun gear (3). | ||
| Planetary gear set, function | GF27.50-P-5100-01G |
