Modulating pressure regulating solenoid valve, location / task / design / function - GF27.19-P-5110G
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6

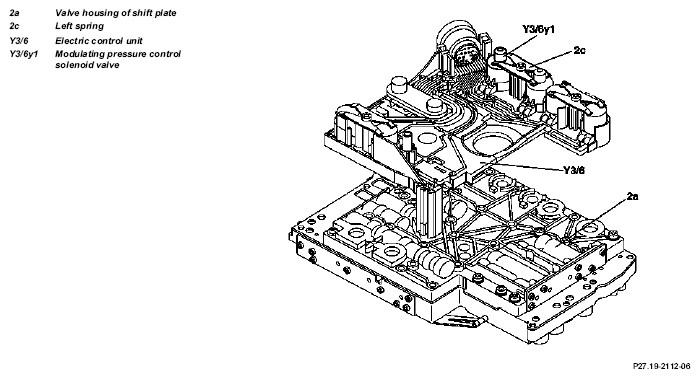

| Modulating pressure regulating solenoid valve, location | In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the shift plate (2a) by means of a leaf spring. | ||
| Modulating pressure regulating solenoid valve, task | To control the modulating pressure depending on the constantly changing operating conditions such as load/gear changes. | ||
| Modulating pressure regulating solenoid valve, design | GF27.19-P-5110-03G | ||
| Modulating pressure regulating solenoid valve, function | The modulating pressure regulating solenoid valve (Y3/6y1) assigns a proportional pressure to the current which is controlled by the ETC control module (N15/3) according to the load. |
