Location / task / design / function of R/P lock - GF27.60-P-5103G
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6 in MODEL 163, 170, 202, 208, 210
without touch shift
TRANSMISSION 722.6 in MODELS 129, 140

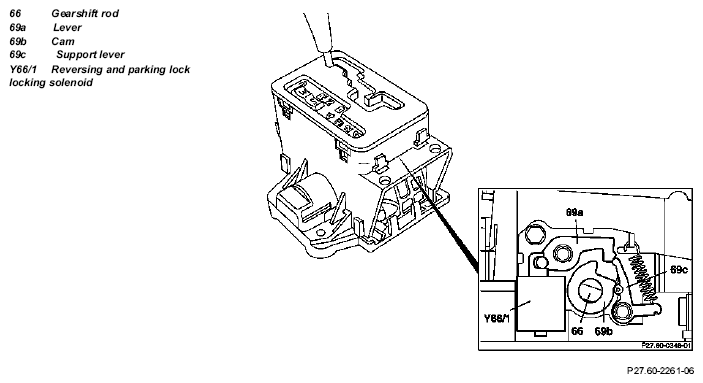

Fig 1: Identifying Reversing And Parking Lock Locking Solenoid, Gearshift Rod, Lever And Support Lever
| R/P lock, location | The R/P lock is located in the floor shift. | ||
| R/P lock, task | Prevents unintentional shifts to the selector lever positions "R" and "P" at driving speeds in excess of approx. 10 km/h. | ||
| R/P lock, design | The R/P lock consists of:
|
||
| R/P lock, function | GF27.60-P-5103-04G |
