Automatic transmission (AT), position of hydraulic components - GF27.10-P-0001-09G

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 722.6

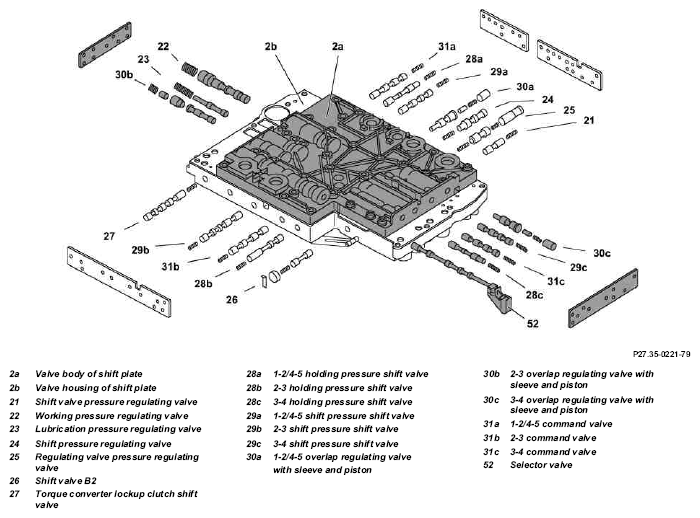

Fig 1: Identifying Automatic Transmission Hydraulic Components Position
G04606384Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
