Removing, installing and checking play compensator - RA46097650235X(46-0235)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Version with end cover, models 124 (except 124.034/036) and 201

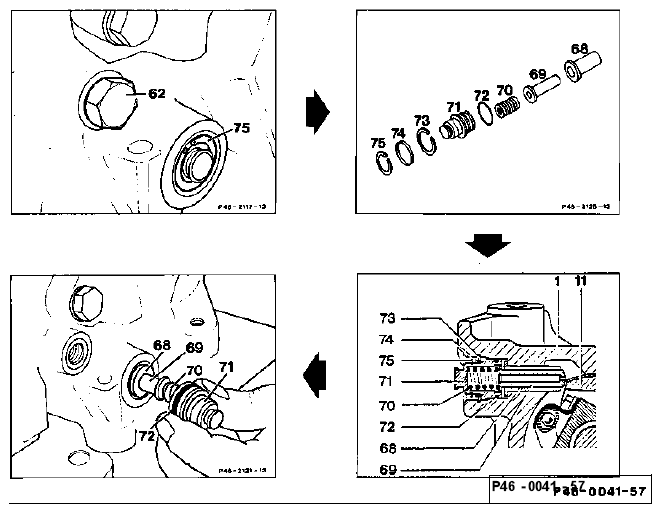

Fig 1: Identifying Play Compensator Components Version With End Cover (Models 124 (Except 124.034/036))

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw plug (62)	unscrew, screw in for center position (35-40 Nm). Rotate steering worm until the power piston is approximately at left or right lock.
Locking ring (75), thrust ring (74), locking ring (73)	remove. When installing, ensure the locking rings are correctly seated.
End cover (71), spring (70), spring pin (69), bush (68)	remove from steering gear housing.
O-ring (72)	replace on end cover (71).
Compression spring (70)	measure length. Minimum length 19 ± 0.5 mm; replace compression spring if length is less than minimum.
Spring pin (69)	examine for signs of wear, replace if necessary.

Version with screw plug, model 129

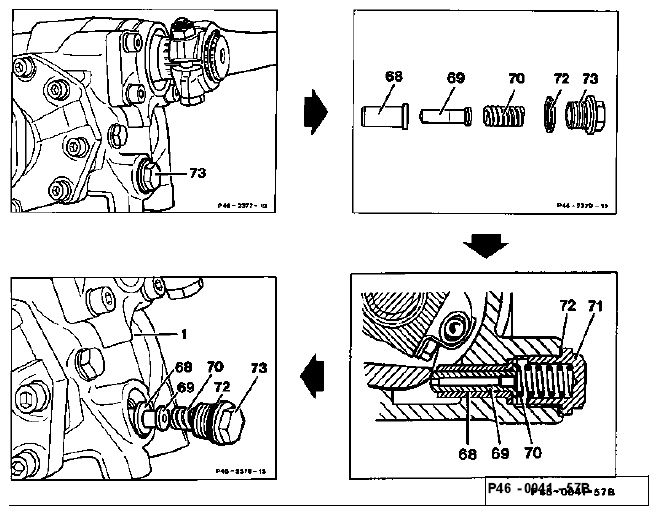

Fig 2: Identifying Play Compensator Components Version With Screw Plug (Model 129)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw plug (73)	unscrew, screw in, 50 ± 5 Nm, replace seal (72).
Compression spring (70), spring pin (69) and bush (68)	remove from steering gear housing, insert.
Compression spring (70)	check.
Spring pin (69)	examine for signs of wear, replace, if necessary.

NOTE: The play compensator is only effective in the center area of the steering gear. If a complaint is received about excessive steering play, the steering gear should be re-set (46-0120) .

Version with screw plug, models 124.034/036, 140 and 202

Fig 3: Identifying Play Compensator Components Version With Screw Plug (Model 124.034/036) (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Play Compensator Components Version With Screw Plug (Model 124.034/036) (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw plug (73)	unscrew, screw in, 50 ± 5 Nm, replace seal (72).
Compression spring (70), spring pin (69)	remove in turn from steering gear housing, insert.
Compression spring (70)	check.
Spring pin (69)	examine for signs of wear, replace, if necessary.

NOTE: The play compensator is only effective in the center area of the steering gear. If a complaint is received about excessive steering play, the steering gear should be re-set (46-0120) .
